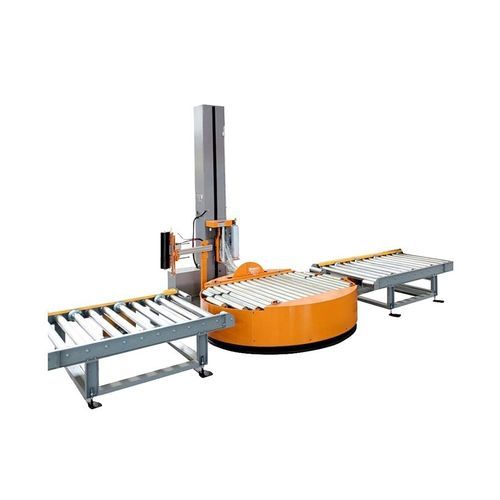

Turntable wrapping machine TP2000FZautomaticpalletstretch film
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- automatic
- Product applications
- pallet
- Other characteristics
- stretch film
- Height
2,600 mm
(102 in)- Width
2,000 mm
(79 in)- Length
3,200 mm
(126 in)- Machine weight
700 kg
(1,543.24 lb)- Maximum wrapping height
Min.: 500 mm
(19.69 in)Max.: 2,000 mm
(78.74 in)- Maximum pallet length
Min.: 500 mm
(19.69 in)Max.: 1,100 mm
(43.31 in)- Maximum pallet width
Min.: 500 mm
(19.69 in)Max.: 1,200 mm
(47.24 in)- Maximum pallet weight
2,000 kg
(4,409.25 lb)- Table diameter
1,650 mm
(64.96 in)- Voltage
380 V
- Power
0.75 kW
(1.02 hp)- Capacity
Min.: 20 p/h
Max.: 40 p/h
Description
TP2000FZ online automatic wrapping machine is a wrapping machine used with automatic packing line. The machine is controlled by PLC, which can realize a complete set of packaging processes of automatic detection, automatic conveying, automatic wrapping and automatic film breaking.So as to completely realize unmanned operation. The machine can also be used with top sheet dispenser.
Performance characteristics:
PLC control
Automatic detection, automatic conveying, automatic wrapping and automatic film breaking are completed at one time without labor.
Use VFD, speed adjustable.
The wrapping layers and the wrapping tension can be adjusted.
