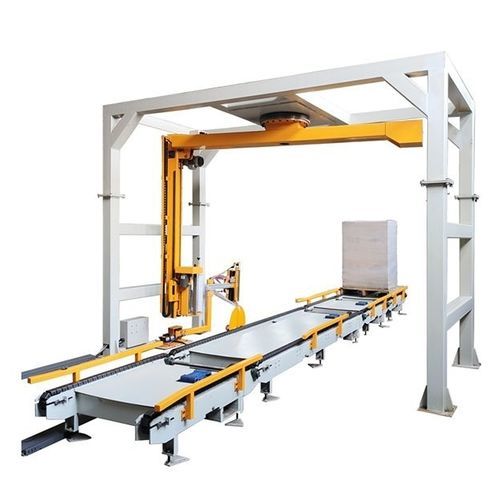

Rotary arm wrapping machine LR1800Fautomaticpalletwith conveyor
Add to favorites
Compare this product
Characteristics
- Type
- rotary arm
- Operating mode
- automatic
- Product applications
- pallet
- Other characteristics
- stretch film, with conveyor
- Height
3,500 mm
(138 in)- Width
3,200 mm
(126 in)- Length
4,200 mm
(165 in)- Maximum wrapping height
Max.: 1,800 mm
(70.87 in)Min.: 500 mm
(19.69 in)- Maximum pallet length
Max.: 1,100 mm
(43.31 in)Min.: 500 mm
(19.69 in)- Maximum pallet width
Max.: 1,200 mm
(47.24 in)Min.: 500 mm
(19.69 in)- Voltage
380 V
- Power
1.5 kW
(2.04 hp)- Capacity
Max.: 45 p/h
Min.: 35 p/h
Description
There are two models of LR1800F arm rotating pallet wrapping machine, one is a single version and the other is used with conveyors. Two models are suitable for use when the product is relatively large and heavy, and it is inconvenient to use the pallet wrapping machine. The machine drives the wrapping film to wrap around the goods through the arm rotation, which effectively avoids the danger of heavy products.
Performance characteristics:
1.PLC control, speed adjustable
2.Suitable for wrapping larger and heavier products
3.The wrapping layers and the wrapping tension can be adjusted
4.It has the function of automatically sensing obstacles to effectively avoid personal injury
