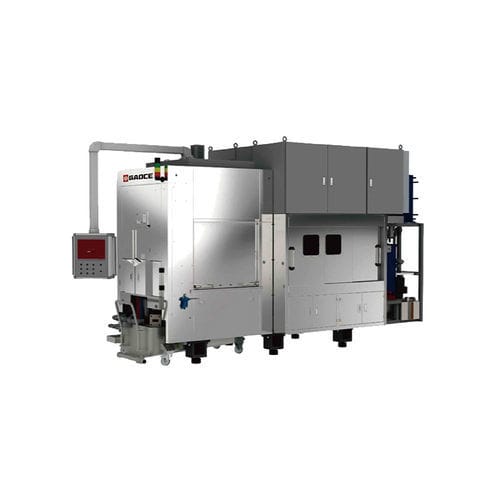

Wire cutting machine GC-SADW6670

for metalfor stonebar

Product Description

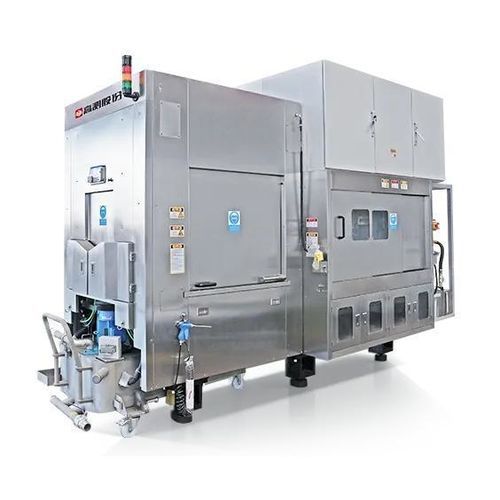

This diamond wire saw is designed for slicing sapphire rods and wafers, with front feeding/unloading and wiring on both sides. The machine overall width is ≤ 2 m to maximize workshop utilization. A servo motor drives the tension swing-rod to ensure sensitive tension adjustment. Key structural components are adjustable to meet cutting requirements up to 50 N cutting tension, 2400 m/min wire speed and 700 mm rod length.

Key Features

• Front feeding and unloading; wiring on both sides (one-way or two-way incoming)
• Overall width ≤ 2 m to optimize floor space
• Servo-driven tension swing-rod for precise tension control
• Designed to support up to 50 N cutting tension, 2400 m/min wire speed and 700 mm rod length

Product Parameters

• Model: GC-SADW6670
• Application: Sapphire slicing/cutting
• Feeding/Unloading: Front
• Wiring: Both sides (one-way or two-way incoming)
• Max workpiece size: 4–6” × L700
• Max wire speed: 2400 m/min
• Wire diameter (steel): 0.23 mm
• Cutting tension: 10–50 N (designed up to 50 N)
• Cutting method: Downward cutting
• Fast forward/rewind: 50–500 m/min
• Max swing angle: ±12°; Max swing speed: 12°/s
• Wheelbase: 395 mm
• Main roller groove outer diameter: Φ192–Φ202 mm
• Max wire reserve: 65 km (with 0.2 mm wire)
• Supported rod length (design): 700 mm
• Approx. dimensions (L×W×H): 4300 × 2000 × 3100 mm
• Approx. equipment weight: 12000 kg
• Main roller weight: ≈140 kg per piece (net)
