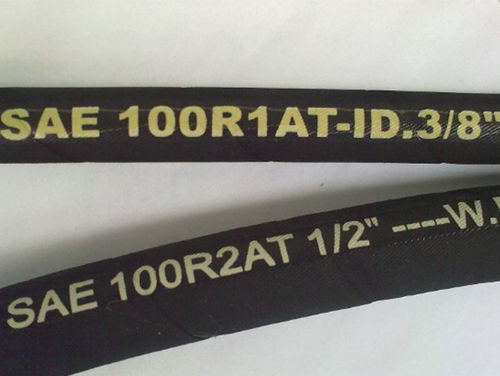

Hydraulic hose SAE 100 R1A / DIN EN 853 syntheticsteelindustrial
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic, steel
- Applications
- industrial
- Other characteristics
- braided, neoprene-coated
- Inner diameter
Max.: 50.8 mm
(2 in)Min.: 6.4 mm
(0.252 in)- Outer diameter
Max.: 66.7 mm
(2.626 in)Min.: 15.9 mm
(0.626 in)- Pressure
Max.: 3,270 psi
Min.: 920 psi
- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Short Description:
SAE 100 R1A / DIN EN 853 1ST STANDARD
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One braid of high-tensile steel wire
COVER: Black Neoprene Blend
WORKING TEMPERATURE: From -40℃ up to +100℃
