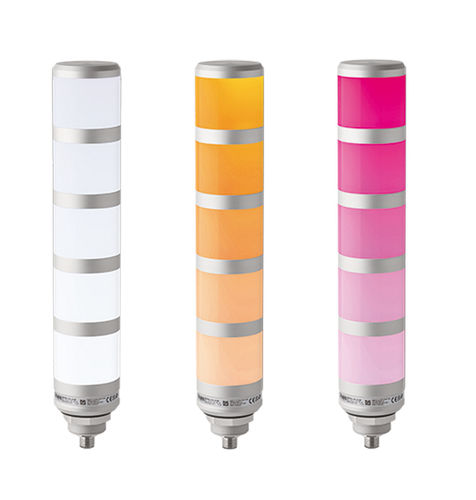

LED stack light QDT50L-IOL

8-colorIP65IP20

Product overview
The QDT50L-IOL is an Ø50mm programmable multi-color LED tower light with IO-Link technology, engineered for industrial signaling and Industry 4.0 integration. It supports plug-and-play operation via a standard M12 connector and offers optional built-in buzzer functionality.

Key features

• State-of-the-art multi-colored LED signal tower light with IO-Link technology
• Signaling device optimized for Industry 4.0
• Plug & play via international standard M12 connector for immediate operation
• 8 preset color modes plus user-defined settings
• Optional built-in 80 dB buzzer (buzzer type variant available)
• Environment settings configurable via IO-Link

Associated media

• Product video available (YouTube): overview and features

Caractéristiques / spécifications techniques

• Model: QDT50L-IOL (Standard) · QDT50L-IOL-BZ (Buzzer type)
• Voltage: DC 24V
• Layers: 3 or 5
• Weight: 3-layer — Standard: 0.27 kg; Buzzer type: 0.31 kg. 5-layer — Standard: 0.35 kg; Buzzer type: 0.39 kg.
• Dimension: Diameter Ø51 mm · Height: 165–278 mm
• Materials: Housing — Aluminum; Lens — PC (polycarbonate)
• Protection rating: IP65 (standard) · IP20 (buzzer type)
• Ambient operating temperature: 0°C to +50°C
• Buzzer: optional built-in 80 dB buzzer (available on buzzer type variant)
• Available colors: R (Red), G (Green), Y (Yellow), B (Blue), W (White), O (Orange), P (Pink), Custom
• Certificates: certificates shown on product page (icons)
