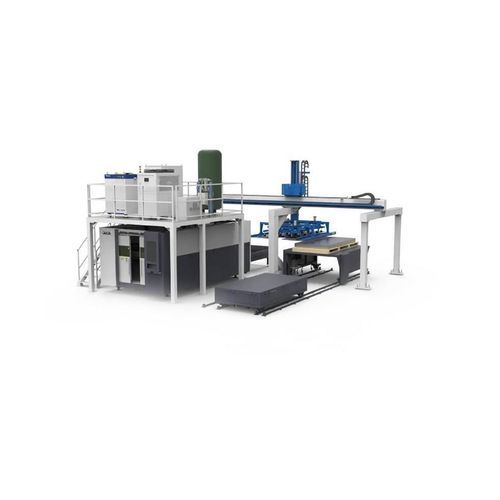

Lifting equipment loading and unloading system ATR series

palletfor material handling equipmentfor sheet metal

Product Overview

• The ATR Series One-Drag-One system uses composite tooling to load raw materials on fixed pallets and palletizes finished waste via an electric trolley, handling up to 3 tons per load.
• ATR Series
• Load capacity: 200-2000 kg
• Structural form: Gantry/Single beam
• Layout: Series / Parallel

Why Choose QLTEK ATR Series?

• Ultra-High Speed
• High Precision
• High Quality
• High Safety
• Intelligentization

Parameters
PARAMETER
ATR SERIES | ATR 30 | ATR 40 | ATR 60
Structure Type | Series / Parallel | Series / Parallel | Series / Parallel
Loading and Unloading Load | 200kg / 400kg | 400kg / 600kg | 1000kg / 2000kg
Maximum Sheet Size | 3000mm*1500mm | 4000mm*2000mm | 6000mm*2500mm
Minimum Sheet Size | 1000mm*1000mm | 1000mm*1000mm | 1250mm*1250mm
Sheet Metal Thickness | 0.8mm-12mm | 0.8mm-12mm | 0.8mm-16mm

Caractéristiques / Spécifications techniques

• Series: ATR series
• Load capacity range: 200–2000 kg (models and options up to 3 tons per load with electric trolley handling)
• Recommended structural forms: Gantry or Single beam
• Layout options: Series or Parallel
• Available models: ATR 30, ATR 40, ATR 60
• Maximum sheet sizes by model: ATR 30 – 3000mm × 1500mm; ATR 40 – 4000mm × 2000mm; ATR 60 – 6000mm × 2500mm
• Minimum sheet sizes by model: ATR 30 – 1000mm × 1000mm; ATR 40 – 1000mm × 1000mm; ATR 60 – 1250mm × 1250mm
• Sheet metal thickness: ATR 30/40 – 0.8mm–12mm; ATR 60 – 0.8mm–16mm
• Key functions: composite tooling, fixed pallet loading, palletizing finished waste, electric trolley handling
