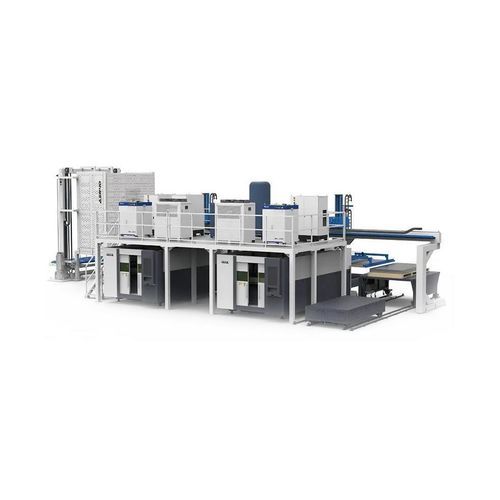

Automatic sheet metal storage system ASR series

for plateshigh-speedASRS

Product Overview
ASR Series One-Drag-Two fully automatic storage system features dual manipulators with separate loading/unloading, stacks finished waste via high-low trolleys (3T), supports 10-layer, 3T per layer storage, and 2 unloading platforms. Adding a material library to the ATR system.

Why Choose QLTEK ASR Series?

• Ultra-High Speed
• High Precision
• High Quality
• High Safety
• Intelligentization

Main Feature
PARAMETER
ASR SERIES | ASR 30 | ASR 40 | ASR 60
Structure Type: Parallel | Parallel | Parallel
Loading and Unloading Load: 200kg / 400kg | 400kg / 600kg | 1000kg / 2000kg
Maximum Sheet Size: 3000mm*1500mm | 4000mm*2000mm | 6000mm*2500mm
Minimum Sheet Size: 1000mm*1000mm | 1000mm*1000mm | 1250mm*1250mm
Sheet Metal Thickness: 0.8mm-12mm | 0.8mm-12mm | 0.8mm-16mm

Caractéristiques / Spécifications techniques

• Series: ASR Series
• Configuration: One-Drag-Two fully automatic material storage system with dual manipulators (separate loading/unloading)
• Finished waste handling: stacked via high-low trolleys (3T)
• Storage capacity: supports 10 layers, 3T per layer
• Unloading platforms: 2 unloading platforms
• Available models and key parameters: ASR 30 / ASR 40 / ASR 60
• Structure Type: Parallel
• Loading and Unloading Load (per model): ASR 30 - 200kg / 400kg; ASR 40 - 400kg / 600kg; ASR 60 - 1000kg / 2000kg
• Maximum Sheet Size (per model): ASR 30 - 3000mm x 1500mm; ASR 40 - 4000mm x 2000mm; ASR 60 - 6000mm x 2500mm
• Minimum Sheet Size (per model): ASR 30 - 1000mm x 1000mm; ASR 40 - 1000mm x 1000mm; ASR 60 - 1250mm x 1250mm
• Sheet Metal Thickness: ASR 30 & ASR 40 - 0.8mm–12mm; ASR 60 - 0.8mm–16mm
