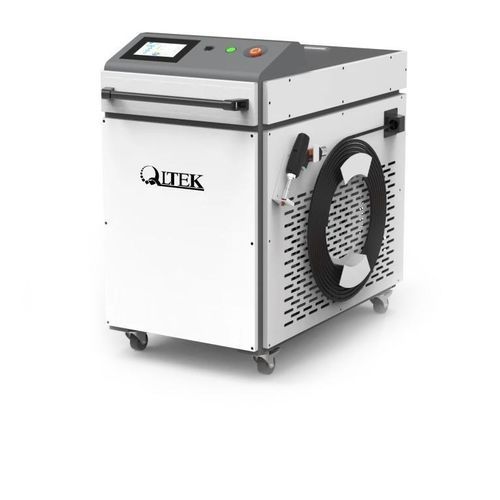

Laser welding machine S series

manualfor metalhigh-speed

Product Overview
S Series water-cooled handheld laser welder combines welding, cutting, cleaning, and weld finishing. With a self-developed process library, intelligent efficiency, and dual-temperature chiller, it ensures reliable operation in extreme conditions.

Why Choose QLTEK S Series?

• Ultra-High Speed
• High Precision
• High Quality
• High Safety
• Intelligentization

Main Feature

• Powerful functions and innovative technology
• Small deformation amount, high-precision welding
• Using domestic first-line brand lasers: high power, deep melting welding, strong weld quality
• Can weld various metal materials, especially medium and thick plate welding; supports single wire feeding, double wire feeding, triple wire feeding and other processes
• Ergonomically designed welding gun for comfortable operation
• Safety functions including temperature monitoring and grounding protection
• Built-in dual-temperature dual-control chiller cools core components (lasers, welding heads) for uninterrupted operation in extreme environments

PARAMETER
Series | Model | Total Equipment Power | Cooling Method | Device Size | Device Weight | Laser Power
S Series | S15 | 6kW | Water cooling | 1100mm*610mm*1000mm | 160kg | 1.5kW
S Series | S20 | 9kW | Water cooling | 1100mm*610mm*1000mm | 165kg | 2kW
S Series | S30 | 10kW | Water cooling | 1300mm*610mm*1000mm | 199kg | 3kW

Additional Features / Application Notes

• Combines multiple processes: welding, cutting, cleaning, weld finishing
• Self-developed process library for repeatable, intelligent welding procedures
• Suitable for diverse scenarios and industrial environments, with enhanced dust removal and cooling

Caractéristiques / Spécifications techniques

• Model/Series: S Series (models: S15, S20, S30)
• Laser Power (per model): S15 = 1.5kW; S20 = 2kW; S30 = 3kW
• Total Equipment Power: S15 = 6kW; S20 = 9kW; S30 = 10kW
• Cooling Method: Water cooling; built-in dual-temperature dual-control chiller
• Device Size: S15/S20 = 1100mm × 610mm × 1000mm; S30 = 1300mm × 610mm × 1000mm
• Device Weight: S15 = 160kg; S20 = 165kg; S30 = 199kg
• Functions: welding, cutting, cleaning, weld finishing
• Wire feeding: supports single, double and triple wire feeding processes
• Safety features: temperature monitoring and grounding protection
• Designed for high speed, high precision and reliable long-term operation in extreme conditions
