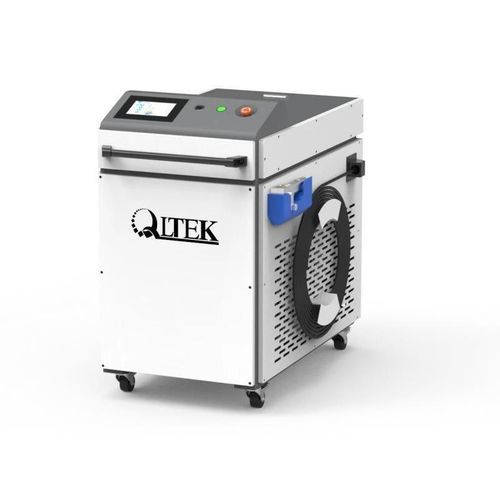

Laser cleaning machine C series

manualfor surface treatmentfor rust removal

Product Overview
C SERIES Handheld Laser Cleaning Machine is lightweight (0.7 kg) and comfortable to operate for long periods. Safe, reliable, and versatile, it handles paint, rust, oil, welding fumes, and more—one machine for multiple applications.

Model Info

• Series: C Series
• Power options (laser): 1.5kW / 2kW / 3kW (listed as 1500w-3000w)
• Device weight options: 146kg / 151kg / 185kg

Why Choose QLTEK C Series?

• Ultra-High Speed
• High Precision
• High Quality
• High Safety
• Intelligentization

Main Feature

• Powerful functions and innovative technology: Rich process library with built-in cleaning/welding process library for various materials, easy to use.
• High power, high efficiency: Adopts high power laser for high cleaning efficiency.
• Comfortable operation, safe and reliable: The cleaning head weighs only 0.7 kg, easy to operate for long periods.
• Multiple functions, one machine for multiple uses: Suitable for paint removal, rust removal, oil removal, welding fume removal and other scenarios.

PARAMETER
C Series / C15 / C20 / C30
Total Equipment Power: 6kW / 9kW / 10kW
Cooling Method: Water cooling / Water cooling / Water cooling
Device Size: 1100mm*610mm*1000mm / 1100mm*610mm*1000mm / 1300mm*610mm*1000mm
Device Weight: 146kg / 151kg / 185kg
Laser Power: 1.5kW / 2kW / 3kW

Caractéristiques / Spécifications techniques

• Series name: C Series
• Models: C15, C20, C30
• Total equipment power: C15 - 6kW; C20 - 9kW; C30 - 10kW
• Laser power: C15 - 1.5kW; C20 - 2kW; C30 - 3kW
• Cooling method: Water cooling (all models)
• Device size: C15/C20 - 1100mm × 610mm × 1000mm; C30 - 1300mm × 610mm × 1000mm
• Device weight: C15 - 146kg; C20 - 151kg; C30 - 185kg
• Cleaning head weight: 0.7 kg (lightweight handheld head)
• Main applications: Paint removal, rust removal, oil removal, welding fume removal, surface cleaning for various materials
