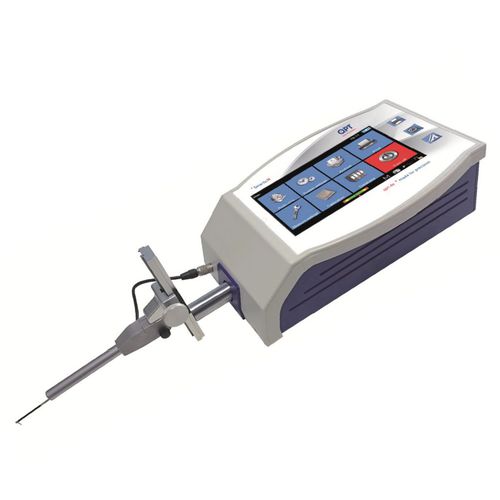

The portable measurement device Smartic M, with an integrated evaluation unit and an interchangeable free-probe system, combines mobility with highly accurate measurements according to the following standards: ISO 4287, ISO 13565, ISO 12085, DIN 4768, VDA 2007, JIS B0671, JIS B0601, JIS, B0631, ASME B46.1. Through the high resolution 7-inch touchscreen and membrane keyboard, and thus easy handling with small dimensions, it can be used in the measuring room as well as on the production line. The device has an error-detection system in the form of an overflow warning if the sensing device is not resting on the surface or if there is overly-high pressure on the sensing device.
The large internal memory offers space for a multitude of measurements. The measurements are stored and logged via the built-in USB interface directly on a printer or PC. Measured data can be saved on a USB stick. Software updates take place fully automatically via a USB update stick. The supplied probe head with changeable probe arms is used as free sensing device or, with mounted sliding protection, as a standard “running” sensing device. Other sensing devices with different offsets, e.g. for small holes or deep grooves, are available.
