The compact display devices of the “digi Series” are a latest-generation tool for the implementation of dimensional testing, using one or two measuring sensors, linear scales, speed sensor or air-measuring devices (measuring probes/measuring rings).

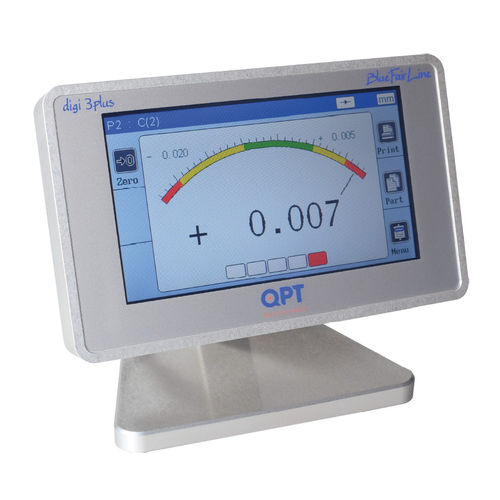

With their user-friendly feel and interface, the digi 3plus and digi 3pneu are devices which all operators can be immediately in control of. The rugged touch screen can be operated with gloves. The compact display devices have several communication options, USB and RS232, in order to be able to control remotely and/or to transfer measurements to an external system.
Inductive measuring sensor (Hirt, Tesa, Mahr, Metro, Solartron…)
Incremental measuring sensor (Heidenhain; Magnescale and Mitutoyo via Adapter)
Linear scales and speed sensors (Heidenhain, Magnescale)
Air-measuring devices (measuring probes and measuring rings)
Glare-free colour display (W x H) 100 x 55 mm
High-resolution digital and analogue displays
External data and control output
5-volt power supply
Robust aluminium housing, usable in manufacturing
Total size (W x H x D) 140 x 80 x 105 mm
Foot plate for solid standing, also for screwing on
Total weight 0.6 kg
