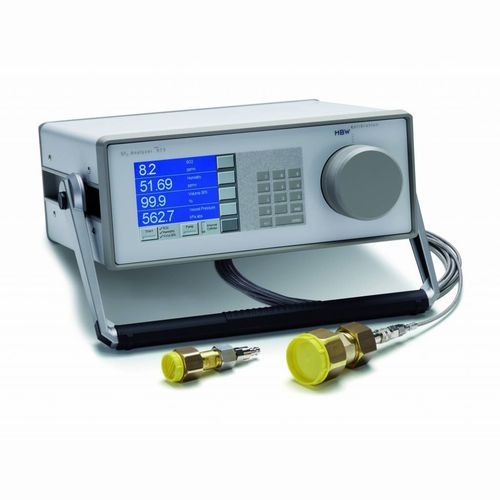

Water analyzer MBW 973-SF6

sulfur dioxideoxygenhydrogen

The MBW 973-SF6 is an advanced SF6 gas analyzer for the measurement of humidity, SF6 purity and SO2 concentration in SF6 gas insulated switchgears (GIS) and other high voltage equipment. With its internal gas containment and recovery system, the 973-SF6 provides a high quality and environmentally safe measurement solution within a single self-contained unit. Pure SF6 is the standard filling within GIS, but over time gas compartments become contaminated with water vapor (H2O) through permeation and by desorption from internal materials. Whilst water vapor and SF6 do not normally react with each other, in the presence of a high-energy discharge, hydrogen and oxygen disassociated from water vapor will react with the sulfur and fluorine from SF6 to form decomposition by-products. These include sulfur dioxide (SO2) and hydrofluoric acid (HF) that are corrosive to the internal components of gas compartments. SF6 with low water vapor content (low humidity) significantly reduces the potential for formation of these corrosive compounds, which is why accurate and repeatable measurement data is an invaluable part of any GIS preventative maintenance program utilising the MBW 973 SF6 gas analyzer. • Simultaneous measurement of humidity, SF6 purity and SO, concentration • Integrated gas recovery system with automatic pump back • Fully automated SF6 gas testing • Fundamental drift-free measuring principle • Measurement results at SFg compartment or standard pressure • Intuitive color touch screen user Interface • User verifiable calibration • Robust case for easy transportation
