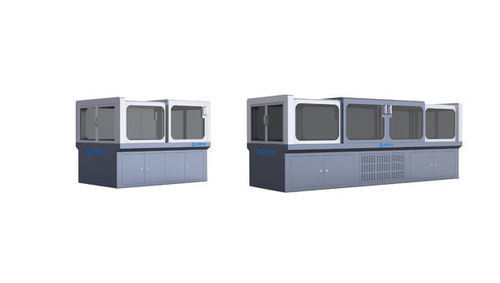

Torque test bench

speedperformancecurrent

The Motor Back-to-Back Test Bench is a high-end testing system based on motor torque loading for evaluating frequency response and other dynamic performance characteristics of electric motors. It provides a highly integrated testing solution for motors and drivetrain systems across a wide range of applications, addressing the full product lifecycle of key components such as electric motors, gearboxes, clutches, and electromechanical actuators. The system is designed in accordance with national, military, and industry standards, supporting fundamental performance evaluation, environmental adaptability, durability testing, and a variety of optional specialized test functions.<br><br>Fundamental Performance Testing<br><br>Torque<br><br>Speed<br><br>Angular position / Travel<br><br>Operating voltage / Operating current<br><br>Drivetrain performance (transmission efficiency and gear ratio)<br><br>Static Performance Accuracy Testing<br><br>Positioning accuracy;Repeatability;Zero drift<br><br>Dynamic Performance Testing<br><br>Step response time;Overshoot;Transient response;Starting current;Dynamic torque tracking;Alternating load performance;Simulation of real operating conditions.<br><br>Frequency Sweep Testing<br><br>Supports sine, triangular, square-wave, and other excitation profiles;Evaluation of frequency response characteristics, including bandwidth and phase margin.<br><br>Durability Testing<br><br>Environmental Adaptability Testing<br><br>More Optional Test Functions: See Motor Back-to-Back Test Bench Product Manual<br>
