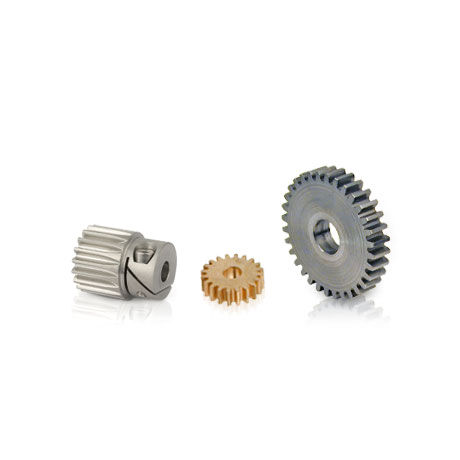

Module 0.5, 30 Tooth Mild Steel Spur Gear with Set Screw
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$13.39$12.79$12.20$11.61Request For Quote
Lead Time2 wks2 wks2 wks3 wks
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Module ( Pitch)0.5
No. Of Teeth30
Hub StyleWith Hub & set screw
Bore Size6.00 mm
Face Width5.00 mm
Pitch Dia.15.00 mm
Hub Dia. (0 = Hubless)13.00 mm
Pressure Angle20.0 °
[Caution on Product Characteristics]
For products with a tapped hole, a set
screw is included.
The allowable torques shown in the table
are calculated values according to the assumed usage conditions. Please see page
35 for more details.
The backlash values shown in the table
are the theoretical values for the backlash
in the normal direction for a pair of identical gears in mesh.
If the bore size is less than Ø 4, the tolerance is H8. If the bore size is Ø 5 or Ø 6,
and the hole length exceeds 3 times of the
bore size, the tolerance is also H8.
The use of S3T and S1T shaped set
screws for fastening gears to a shaft are
only applicable to light load usage. For
secure fastening, please use dowel pins,
* Please see book one
for additional products
in these modules.
[Caution on Secondary Operations]
Please read “Cautions on Performing
Secondary Operations” on Page 36 when
performing modification and/or secondary
operations for safety concerns.
Avoid performing secondary operations
that narrow the tooth width, as it affects
precision and strength.
