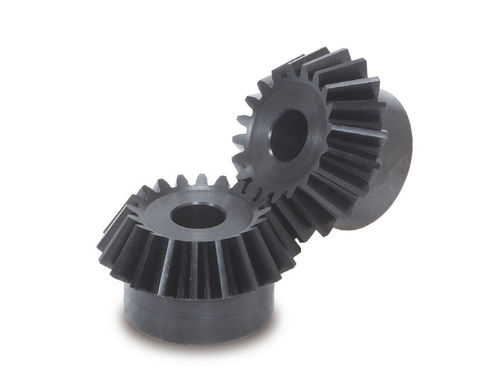

Bevel gear KSAM1.5-20045straight-toothedsteelfor shafts
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Teeth
- straight-toothed
- Material
- steel
- Applications
- for shafts
Description
Module 1.5, 20 Tooth, 45° Shaft Angle Mild Steel Angular Miter Gear
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$22.10$21.13$20.17$19.22Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Pitch Diameter (C)30.00
Face Width (J)11
Shaft Angle45°
No. Of Teeth20
ClassCommercial
MaterialCarbon Steel
Module1.5
Overall Width (F)19.33
Bore Size (A)8
Mounting Distance (E)45
