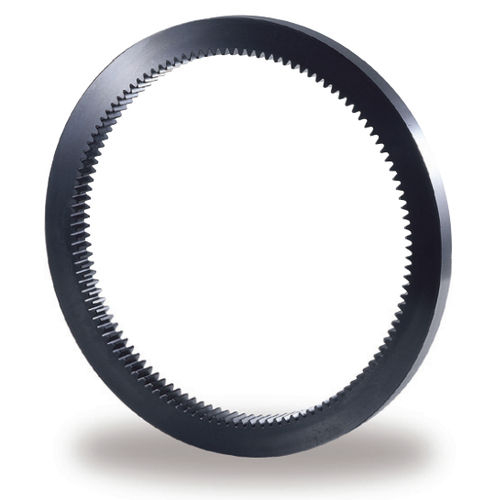

Spur gear KSIR3-160straight-toothedsteel
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Teeth
- straight-toothed
- Other characteristics
- steel
Description
Module 3, 160 Tooth Mild Steel Ring Gear
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$1,122.56$1,076.41$1,030.67$985.35Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Module ( Pitch )3
No. Of Teeth160
Quality ClassCommercial
MaterialCarbon Steel
Face Width (S)30.00 mm
Pitch Dia. (P.D.)480.00 mm
Outside Dia. (D)544.00 mm
Inside Dia. (d)474.00 mm
Pressure Angle20 °
