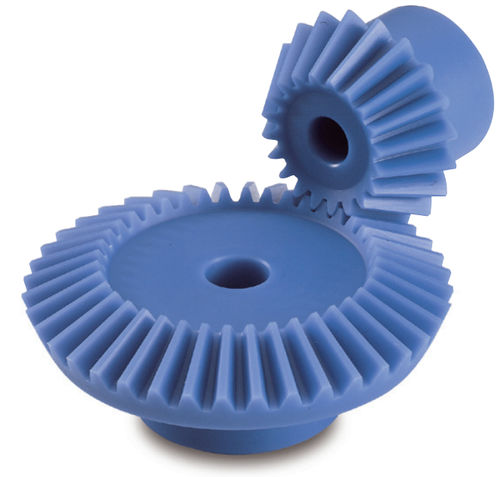

Bevel gear KPB1.25-2040straight-toothedhub
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Teeth
- straight-toothed
- Configuration
- hub
Description
Module 1.25, 20 Tooth Nylon Bevel Gear
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$20.74$19.81$18.89$17.98Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Gear Ratio /mod.1:2 / 1.25 Module
Teeth (pinion / Gear)20/40 (Sold as Each)
Drawing Choice/mat'lPinion (Nylon)
Mating Part# / BoreKPB1.25-4020
Bore /hub Style8 / Plain Hub
Pressure Angle20.0 °
Face Width8.00
Pitch Dia.25.00
Overall Width18.66
Mounting Distance36.00
