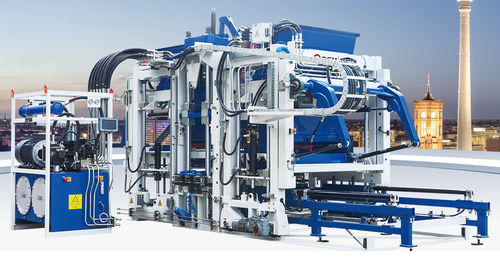

Concrete block making machine ZN900CG

automatic

ZN900CG is an automatic block making sachine, designed in Germany, made in China. There are SIEMENS Frequency vibration or servo vibration motors in the bottom，2x0.55KW vibrators on top vibration, to achieve 100KN vibration force. The product height can range from 40mm to 300mm. With SIEMENS PLC,Touch Screen, Contactors etc.control system, Italy hydraulic system, automatic mould clamping system., it is the most efficient & stable machine in the China.In terms of performance, efficiency, energy-saving, environmental protection, etc., it is far ahead of other block machines in the market. Maximum Forming Area - 1300×650mm Block Height - 40-300mm Cycle Time - 14~24S (depending on block type) Servo Vibration Force - 100KN Pallet Size - 1350×700×(14-35)mm Bottom Vibration - 2x7.5KW (Frequency) /4x12KW (Servo) Top Vibration - 2×0.55KW Control System - SIEMENS Total Power - 52.6KW Total Weight - 17T (including facemix device & mould) Machine Dimension - 6300×2800×3500mm
