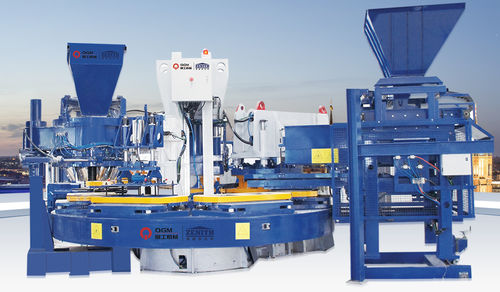

Hydraulic press HP-1200T

formingrotating tablefor concrete

1.Prefill valve with a large flow, guarantees the output of a super high pressure and the quick movements and reactions. 2.The hydraulic station adopts a variable pump, which regulates speed and pressure through a proportional valve, which can save energy and easy to operate. 3.The large slewing bearing is used in the turntable, which is controlled by a servo motor with an encoder, to achieve stable operation and precise control. 4.Adopt advanced visual control system, PLC adopts SIEMENS S7-1500 series. 5.The facemix filling device has a built-in planetary mixer, which uses a quantitative turntable, and the amount of filling is accurate and stable each time. 6.The base material filling device can quantitatively control the base material amount through a variety of transition devices, and then control the height of the finished brick, which greatly saves the number of molds. Numbers of work station - 7 Block Arrangement(Example) - 900×900(1pcs/mould) 500×500(2pcs/mould) 400×400(4pcs/mould) Max. Block Height - 80mm Main Pressure Cylinder Bore - 740mm Cycle Time - 12-18s
