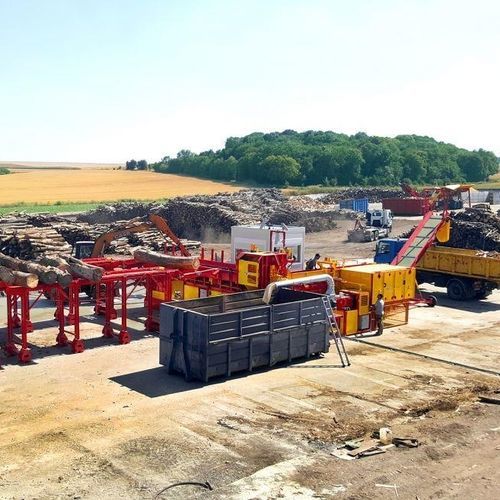

Vertical log splitter XYLOG 800

horizontal

Maximum cutting diameter 800 mm. Cutting system with chain guide or circular saw blade. Cutting length adjustable from 250 to 500 mm. Length of cut managed by a hydraulically adjustable stop, with a backward movement of the stop at the time of cutting to avoid constraining the sawing. Combination feeder with 3- or 4-chain deck: up to 8 m of useful chain (for fixed station machine). Ideal for logs 4 to 8 m long. Timber fed by chain conveyor then V-shaped channel, min. length 4 m. For good feeding of timber to the cutting area, even short lengths. 3 independent wood holding clamps for cutting. Whatever the shape of the wood, the clamps are in contact with it. Possibility to evacuate directly the pieces that are not to be split without passing through the splitting cross (Ø 200 mm max). The wood scraps can also be evacuated to the rear thanks to the pallet. Buffer zone with a 3-metre long belt for continuous feeding of logs to the splitter. Splitting system with two independent blades, with 3 independent pressers for a good hold of the wood. ISO POWER system on the blades, to manage the speed of the blades according to the power required. XYLOMETER® : Automated system for measuring the volume of wood produced. On the splitting area, a metal conveyor with an adjustable pace feed from 40 to 300 mm for the size of the logs. Design according to your requirements for stationary machines.
