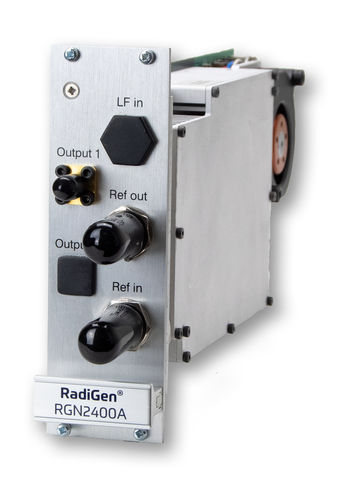

Signal generator RadiGen 400 MHz (RGN2400A)
RF

signal generator
signal generator
signal generator
Add to favorites
Compare this product


Characteristics

Type
signal, RF

Description

The RadiGen® range of EMC RF signal generators is designed for EMC immunity testing applications and provides fast (output level is set within 500 micro seconds) and accurate (no unwanted output glitches) EMC tests without the need of external modulation sources (internal AM/Pulse modulation). The RadiGen® is an accurate RF signal generator with a frequency error of less than 20 ppm and modulation accuracy better than 2 % and is delivered as a very compact, one slot, plug-in card designed to fit into the RadiCentre® modular and multifunctional EMC test system. The RadiGen® model RGN0230A (Low Band) covers a frequency range from 9 kHz to 230 MHz and is ideally suitable for conducted immunity test applications like IEC61000-4-6 (EMC) or ISO11452-4 (Automotive-BCI).
