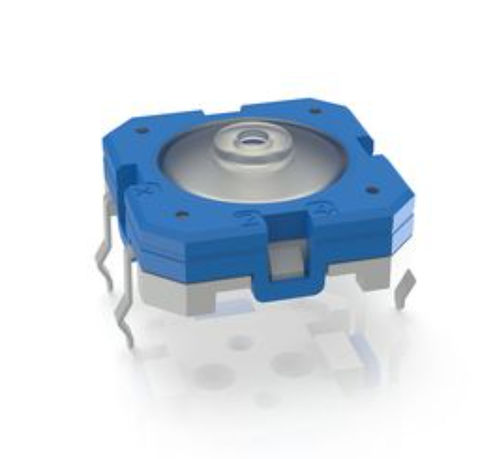

Tactile switch RACON 12 S seriesSMDsingle-poleilluminated
Add to favorites
Compare this product
Characteristics
- Type
- tactile, SMD
- Number of poles
- single-pole
- Other characteristics
- illuminated, PCB, momentary, snap-action, flat
- Primary current
Min.: 0.01 A
Max.: 0.1 A
- Voltage
Min.: 0 V
Max.: 35 V
- Diameter / length
12 mm, 14.5 mm
(0.5 in, 0.6 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 90 °C
(194 °F)- Width
12 mm, 13.6 mm
(0.5 in, 0.5 in)- Height
13.5 mm
(0.5 in)
Description
Flat data entry keyboards with RACON 12 i-elements should be constructed in a 15.24 mm grid. With this grid, strips of glue remain between the individual keys on the front panel. The overlay, which we recommend embossing above the key switches, can be glued onto these strips of glue. When using our RK 90 system design, we recommend 9 x 9 mm keycaps.
• Measurement-control-regulation
• Mechanical and system engineering
• Automotive
• Electro-medical
• Gold contacts, reliable switching with low currents
• Full illumination through 2 LEDs
• Overall height 9.7 mm
• Terminal technology: THT
• Traceability through product identification
• sealable (tested media see Downloads)
