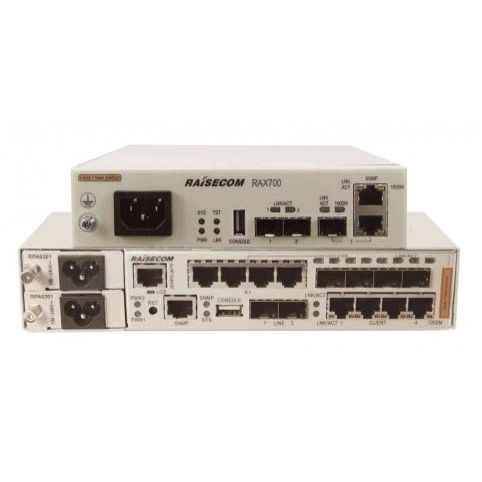

Ethernet demarcation device RAX7 series

These intelligent Ethernet demarcation devices can be deployed for the delivery of standard E-Line, E-LAN, E-Tree, and E-Access services for large enterprises/organization and small/medium businesses, and for mobile backhaul. The very compact design makes it easy for deployment. Both RAX701-GC and RAX711-L support zero-touch provisioning and standard ITU-T Y.1564 SAT for an easy and efficient service turn-up, and they guarantee end- to-end SLA of classified services with the support of CFM and ITU-T Y.1731 SLA. All performance data are well presented on GUI. The service-based QoS helps to differentiate flows and to commit forwarding priority within each EVC. And the support of ITU-T G.8032/1 help the EDD perfectly fit in different network topologies with high reliability and flexibility. • Compact hardware design • Zero touch provisioning • MEF CE2.0 Certified E-Line, E-LAN, E-TREE and E-Access services • L2VPN over MPLS with MPLS-TP OAM and Protection features • ITU-T G.8031/8032 ELPS/ERPS with sub-50ms switch-over time • ITU-T Y.1564 SAT and RFC2544 • Hardware-based IEEE802.3ah OAM, 802.1ag CFM, Y.1731/SLA • TWAMP light (Generator & Reflector) • Synchronization: SYNC-E and 1588-TC • User-friendly CLI/GUI-based management
