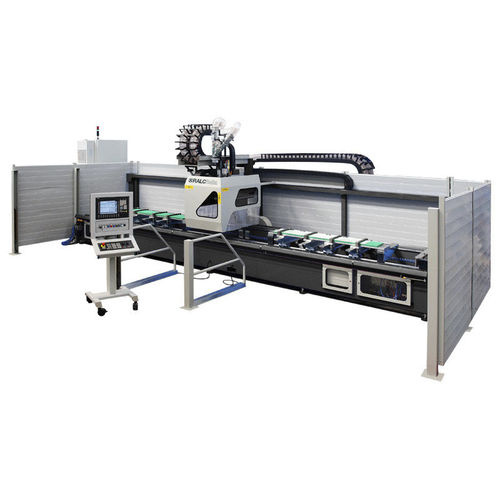

3/4-axis machining center RMC M

verticalfor aluminumdrilling

RMC M is a working center for aluminium profiles with 3 or 4 axes controlled, fully automatic management of machining such as drilling, milling and tapping. The workspace can be managed in two completely independent zones. The RMC M Centre is equipped with a Teleservice modem and is available with optoelectronic barriers. A wide range of accessories make the RMC M an extremely versatile centre to meet the needs of the users. Versions: 3 Axes-4 axes Standard LENGTHS: 4000 mm-6700 mm-9000 mm Machinable Material: Light alloys, aluminium, copper, plastics. TECHNICAL SPECIFICATIONS Machine specifications •Maximum profile size can be worked on 1 face (650): 650 x 280 x L * •Maximum profile size can be worked on 1 face (1100): 1100 x 280 x L * •Maximum profile size can be worked on 3 faces (650): 400 x 280 x L * •Maximum profile size can be worked on 3 faces (1100): 750 x 280 x L * •Maximum usable profile size on 1 face: 220 x 200 x 3100 * •Maximum profile size can be worked on 3 sides: 135 x 200 x 3100 * •Max repeatability tolerance: ± 0.1 (mm) * The working dimensions are relative to the tool holder ISO 30 ER 20 inserted with projecting bur 40 mm (ver. 6700) Axes •Number of axes: 4 •Working stroke X-axis: 4,000-6,700-9,000 (mm) •Working Stroke Y Axis: 650-1,100 (mm) •Working stroke Z-axis: 300 (mm) •Useful stroke of Axis rotation: ± 95 (°) •X-Axis Displacement speed: 80 (M/min) •Y-Axis Displacement speed: 60 (M/min) •Z-Axis Displacement speed: 35 (M/min) •Axis Rotation Speed: 2 (sec/180 °)
