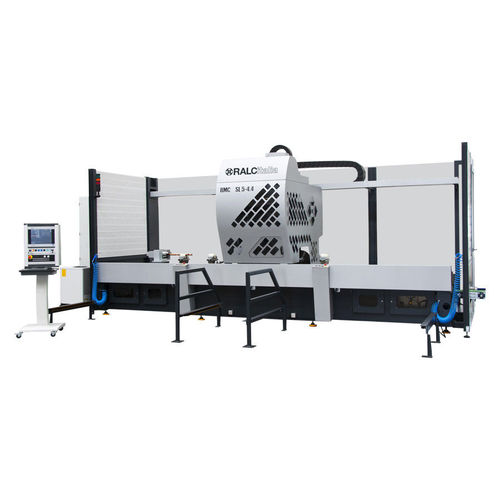

5-axis CNC machining center RMC M, RMC SL

4-axis6-axisvertical

Special versions of the RMC machining centres equipped with a working head with 5 interpolating axes on the Electromadrino plus clamping spindle and pipe rotation. They perform drilling, milling, contouring, cutting, drilling flow, commuting or single zone machining. Designed with dedicated moressays for the profile to be produced and equipped with a system for Remote Assistance over IP network. TECHNICAL SPECIFICATIONS Axes •Number of axes: 4 to 6 (with pipe-holder spindle) •X Axis Displacement Speed: 80 (M/min) •Y-Axis Displacement speed: 60 (M/min) •Z-Axis Displacement speed: 40 (M/min) •Axis A and C rotation speed: 50 (°/sec) •Useful stroke X-axis work: 4400:9000 (mm) •Useful stroke of work Y axis: 600 (mm) •Useful Travel Z-axis work: 300 (mm) •Useful stroke of work axle A (5 axes version): ± 120 (°) •Working Stroke C-axis (5-axis version): ± 213 (°) •Max cutting blade diameter (SL only): 450 (mm) •Machinable Material: Light alloys, aluminium, copper, plastics, steel profiles Options •SIEMENS or ECS numerical control •Absolute Axis Motors •Preset and automatic tool metering •3d CAD/CAM Software complete with simulation •Water or air cooled chucks •Integral soundproof Cabin or mobile protection with light curtains
