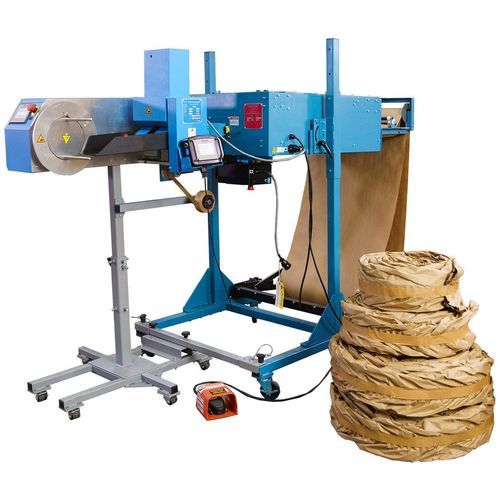

Coil coiler PadPak® Auto-Coiler

for paperprotective packagingautomatic

Overview
PadPak® Auto-Coiler configures Ranpak’s patented paper pads into a compact coil form to deliver a paper-based cushioning solution for dense, fragile and high‑value products. The system mounts to a packaging converter and offers two touchscreen control panels positioned for accessible operation from either side of the pack station. Operators can select from 5 operation modes and save pad/coil sequences to match product protection and throughput requirements. Options in basis weight and coil density enable tuning of protection level versus material yield to reduce waste and increase operational efficiency.

Key Features

• Performance - Coil configuration designed to protect heavy and dense items by distributing shock over a larger contact area.
• Cost efficient - Paper-based solution with high material yield that reduces scrap compared to single-use foam or plastic alternatives.
• Sustainable - Curbside recyclable and biodegradable paper construction for lower environmental impact.
• Customizable - Multiple paper basis weights, selectable coil density and 5 configurable operation modes with savable sequences.

Specifications (product page)

• Converter
  • Cut method: Automatic
  • Weight:
    • Auto-Coiler attachment only: 212 lb (≈96 kg)
    • SR converter: 495 lb (≈225 kg)
  • Dimensions:
    • Auto-Coiler attachment only: L 39” x W 45” x H 69” (L 99 cm x W 114 cm x H 175 cm; height variable)
    • Auto-Coiler (+) SR: L 92” x W 45.5” x H 71” (L 234 cm x W 116 cm x H 180 cm; height variable)
• Good to know - The Auto-Coiler paper solution provides a curbside recyclable, high-performance alternative to plastic and foam for heavy product protection.

Added Value

• Packaging Engineering - Ranpak can analyze existing pack formats, perform drop testing and recommend optimized pad and coil sequences to improve protection and reduce costs.
• Integrated Applications - Custom engineering services design integrations to place the converter around, above or below packing areas for inline operation.
• Packaging Training - On-site training reduces material use (up to 20% in typical cases) while maintaining protection quality through optimized packing techniques.

Technical specifications

• Product name: PadPak® Auto-Coiler
• Brand: Ranpak
• Technology: Configures patented paper pads into a coil design for heavy-duty cushioning
• Control: Two touchscreen control panels; touchscreen offers 5 operation modes
• Customizable: Savable pad and coil sequences; broad range of basis weights and coil density selection
• Cut method: Automatic
• Weights: Auto-Coiler attachment only — 212 lb (≈96 kg); SR converter — 495 lb (≈225 kg)
• Dimensions: Auto-Coiler attachment only — L 39” x W 45” x H 69” (L 99 cm x W 114 cm x H 175 cm; height variable); Auto-Coiler (+) SR — L 92” x W 45.5” x H 71” (L 234 cm x W 116 cm x H 180 cm; height variable)
• Environmental: Curbside recyclable, biodegradable (paper alternative to plastic/foam)
• Typical applications: Protection of heavy, dense, fragile and high-value products
