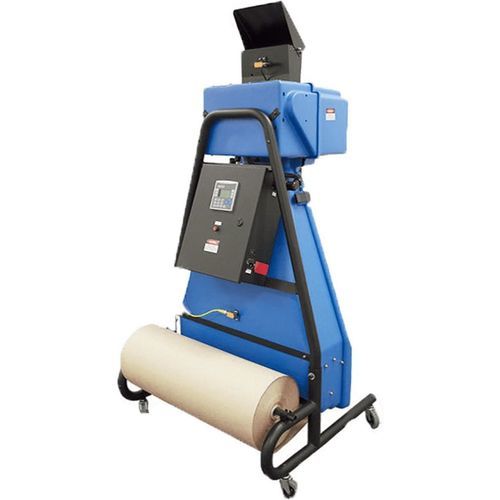

Paper protective packaging machine PadPak® AJR Batch

compact

Product overview
Small, mobile system with multiple operating modes that converts 2-ply and 3-ply kraft paper into protective, shock-absorbing pads for packaging products of various sizes. The PadPak® AJR Batch separates paper layers to trap air, then forms pads by folding and compression. Pads are dispensed at pre-set lengths via an automatic cut mechanism; the machine is designed for simple operation and minimal operator training.

Key Features

• Performance: High shock-absorbing capacity suitable for medium to heavy cushioning applications.
• Simple operation: Fast to install, easy to move, requires minimal training.
• Flexible: Converts both 2-ply and 3-ply Ranpak kraft paper into cushioning pads for diverse product shapes and sizes.
• Cost efficient: Optimizes material use to provide protection with less material.

Specifications

• Cut method: Automatic
• Weight: 165 lb (≈75 kg)
• Dimensions (W × L × H): 33 in × 76 in × 30 in (≈83.8 × 193.0 × 76.2 cm)
• Impact reduction: Up to 90% reduction in transmitted g-forces on drop compared with other materials

Technical specifications

• Model: PadPak® AJR Batch
• Converter type: Mobile paper converter for cushioning pads
• Paper: Converts 2-ply and 3-ply Ranpak kraft paper; design traps air between layers
• Process: Folding and compression to form protective pads, with automatic cutting mechanism
• Applications: Medium to heavy cushioning needs across multiple industries
• Installation & use: Compact and mobile; easy to move and install; minimal operator training required
