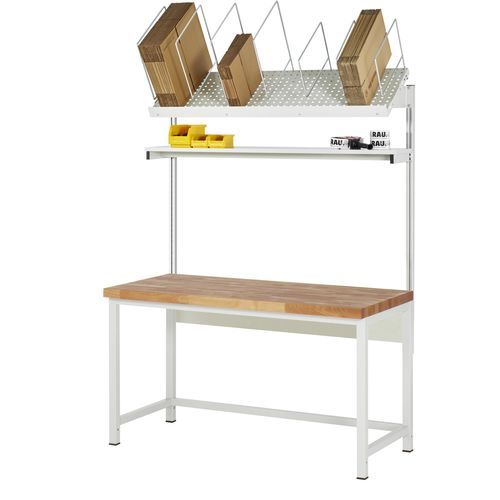

Height-adjustable packing station 03-8000-1-157B4H-VP01.12steelaluminumbeech
Add to favorites
Compare this product
Characteristics
- Type
- height-adjustable
- Worktop material
- steel, aluminum, beech
- Other characteristics
- customizable, modular
- Applications
- industrial, for workshops
- Width
1,500 mm
(59 in)- Depth
700 mm
(28 in)- Height
Min.: 840 mm
(33 in)Max.: 1,040 mm
(41 in)- Load
1,250 kg
(2,755.8 lb)
Description
Product overview
Equipment (attachments / system modules)
Technical data
Delivery & pricing
Specifications
- Beech solid worktop, 40 mm thick, finger-jointed with wedge-glue; front edge with radius, other edges chamfered; lacquer-oil protective finish.
- System underframe adapted for system width 1500 mm; configured table dimensions: width 1500 mm × depth 700 mm; height adjustable.
- 4-leg welded steel-tube frame (45x45x2 mm) with C-profile cross braces (40x40x2 mm); feet with integrated height adjustment and anti-slip caps; frame prepared for retrofitting a roll set.
- Suited for packing and assembly tasks with a stationary surface load of 1250 kg.
Equipment (attachments / system modules)
- Fixing kit (cross carrier) with 2 system supports (aluminum profile 40x40 mm) for system width 1500 mm.
- Intermediate shelf (depth 300 mm) with melamine resin board, 22 mm thick, for system width 1500 mm.
- Tilting carton magazine (depth 450 mm) with stop rail for system width 1500 mm. Carton holders (depth 435 mm): 3 pieces (height 300 mm) and 4 pieces (height 450 mm).
Technical data
- Width: 1500 mm
- Depth: 700 mm
- Height: from 840 mm to 1040 mm
- Top: Beech solid, 40 mm; finger-jointed with wedge-glue; front edge radius, other edges chamfered; lacquer-oil finish
- Frame: 4-leg welded steel tube 45x45x2 mm; cross braces C-profile 40x40x2 mm
- Height adjustment: feet with integrated height setting (profile 40x40x2 mm) with 20 mm hole raster
- Stationary surface load: 1250 kg
Delivery & pricing
- Net price (base rate shown): €1,253.00 (Gross: €1,491.07 incl. VAT)
- Lead time: approx. 5 working days
Specifications
- Product name: Packtisch Komplettset 01
- Brand: RAU
- Series: Werkbank Serie 8000
- Item number: 03-8000-1-157B4H-VP01.12
- EAN: 4040376546869
- Worktop material: Beech, solid
- Worktop thickness: 40 mm
- Worktop construction: Beech lamellae with finger-joint and wedge-glue; front edge radius; edges chamfered; lacquer-oil protection
- System underframe dimensions: W1495 × D650 × H800–1000 mm
- Frame: 4-leg welded frame, steel tube 45x45x2 mm; cross braces C-profile 40x40x2 mm
- Height adjustment: feet with integrated adjustment and 20 mm hole raster
- Prepared for roll set retrofit
- Stationary surface load: 1250 kg
- Lead time: approx. 5 working days
