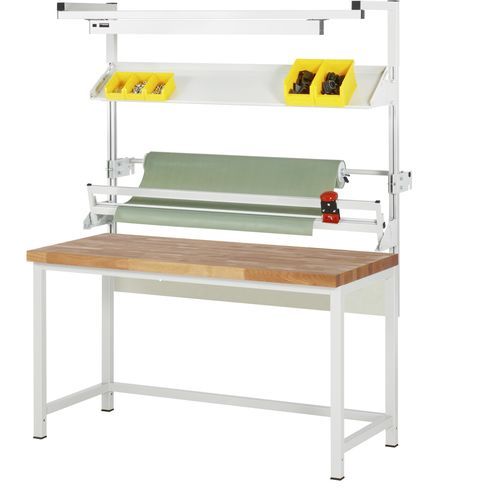

Height-adjustable packing station 03-8000-1-157B4H-VP02.12
beechmodularrobust

Add to favorites

Compare this product

Characteristics

Type

height-adjustable

Worktop material

beech

Other characteristics

modular, robust, customizable

Applications

industrial, order-picking, for workshops

Width

1,500 mm
(59 in)

Depth

700 mm
(28 in)

Height

Max.: 1,040 mm
(41 in)

Min.: 840 mm
(33 in)

Load

1,250 kg
(2,755.8 lb)

Description

Beech solid worktop, thickness 40 mm.
Beech lamellas joined with finger-joint bonding. Front edge radiused, other edges chamfered. Surface protected with environmentally friendly lacquer-oil. Load-bearing, pressure-resistant, durable, wear-resistant and reusable. 100% in-house production using PEFC-certified material from sustainable regional forestry.
System underframe, W1495 x D650 x H800-1000 mm.
4-leg welded frame with two pairs of frame feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Bottom of frame feet with integrated height adjustment using profile steel tube (40x40x2 mm) with 20 mm hole pitch and end element including level compensation and anti-slip nubs for secure stand. Cross braces in C-profile (40x40x2 mm) under the worktop (front, rear) and below (rear). Frame feet prepared for retrofitting a castor set.

Equipment

Fixing kit (crossbeam) with 2 system supports (aluminium profile 40x40 mm) for system width 1500 mm.
Pair of outriggers (mounting on system supports) for mounting the runner/mounting rail.
Runner/mounting rail (C-profile 40x40x2 mm) for system width 1500 mm.
LED workplace light with on/off switch and power cable. L1200 mm for mounting on runner/mounting rail.
Metal shelf (depth 300 mm) tiltable, with 2 mounting brackets for infinite tilt adjustment for system width 1500 mm.
Roll holder unit for mounting on system supports for system width 1500 mm. For rolls with shaft diameter 25 mm. Max roll width 1350 mm, max roll diameter depends on mounting.
Cutting device with blade and 2 mounting brackets (infinite tilt) for mounting on system supports for system width 1500 mm. Cutting width approx. 1275 mm.
