Beech workbench 05-8000-1-207B4S.KB-E-US-Sch

for workshopsindustrialwith drawer

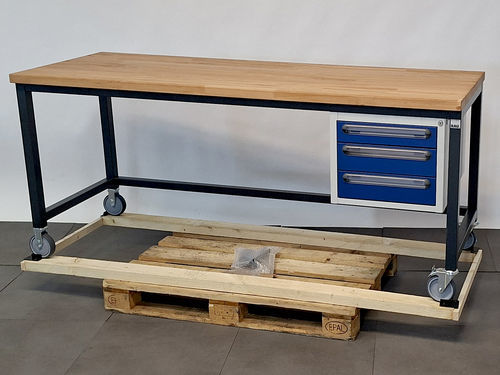

Product description

• Beech solid worktop, thickness 40 mm.
• Beech lamellas with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protection with eco-friendly lacquer oil. 100% in-house production; raw material PEFC-certified from sustainable regional forestry.
• System base as stated in the description: W1995 x D650 x H840 mm.
• 4-leg welded frame with two pairs of frame feet made from rectangular steel tube (45 x 45 x 2 mm) including depth bracing (top and bottom).
• Frame feet: 2 rigid castors and 2 swivel castors with brake; wheel diameter 125 mm, build height 150 mm; tread made of thermoplastic rubber (grey, non-marking, 85° Shore); wheel body polypropylene. Rigid castors on the left side, swivel castors with brake on the right side (expander fastening).
• Cross braces in C-profile (40 x 40 x 2 mm) above the worktop (front, rear) and below (rear).
• Sliding handles (supplied loose).
• Color variants: RAL 7016 anthracite grey / RAL 7035 light grey / RAL 5010 gentian blue.
• Condition (B-grade): Small paint damages on frame and drawers; small dents on the underbase container; drawers run slightly stiff.

Equipment

• Underbase container Series E, dimension W480 x D600 x H395 mm.
• 3 drawers: 1 x H90, 2 x H120 mm.
• Drawer internal dimension: W390 x D560 mm; load capacity 35 kg; extension 90%; drawer pan fully closed to accept drawer divider sets.
• Continuous, partly integrated handle strip including labelling strip.
• Central lock (pin tumbler) with 2 keys.

Technical data
Pull-out type: Partial extension 90%
Width: 2000 mm
Surface load (mobile): 450 kg
Height: 880 mm
Number of drawers: 3
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: mobile

Item / technical specifications

• Item number: 05-8000-1-207B4S.KB-E-US-Sch
• Width (as stated in table): 2000 mm
• Depth (as stated in table): 700 mm
• Height (as stated in table): 880 mm
• Worktop thickness: 40 mm
• Worktop material: beech solid
• Surface load (mobile): 450 kg
• Number of drawers: 3 (1 x H90, 2 x H120)
• Drawer internal dimension: W390 x D560 mm, load capacity 35 kg, extension 90%
• Frame: rectangular steel tube 45 x 45 x 2 mm with depth bracing
• Castors: 2 rigid / 2 swivel with brake, Ø 125 mm, tread thermoplastic rubber
• Colour: RAL 7016 / RAL 7035 / RAL 5010
