Column type slip ring PRP metalthermoplasticgraphite
Add to favorites
Compare this product
Characteristics
- Construction
- column type
- Material
- metal, thermoplastic, graphite, metallic
- Other characteristics
- modular
- Voltage
660 V
- Primary current
Min.: 20 A
Max.: 30 A
- Rotational speed
30 rpm
(188 rad.min-1)- Number of channels
Min.: 6 unit
Max.: 36 unit
- Internal diameter
42 mm
(1.65 in)
Description

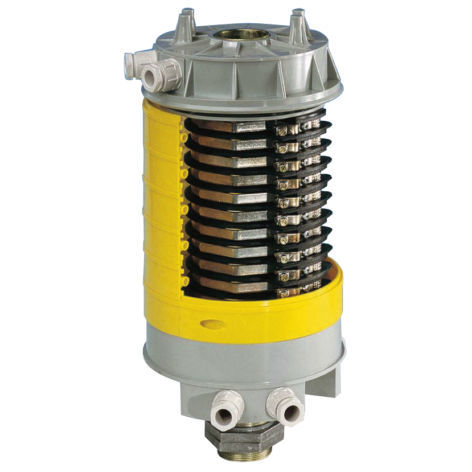

Ravioli Slip Ring Type PRP is realised with a protective insulating housing made of a high mechanical resistant thermoplastic material. One of its outstanding features is the internal hole D42mm which is totally free and allows the passage of tubes for liquids, shafts or metallic wires.
Blade or copper-graphite or silver-graphite brushes for signals are available, executions range from 4 to 36 rings 20/30/50 A.
Ravioli Slip Ring Type PRP combines safety, reliability and versatility to a highly competitive cost.
Modular version
Thanks to the sections they are made of
Free internal hole
That allows the passage of tubes for liquids, shafts or wires
Brushes 20/30/50 A
Up to 50A and for signals
combined versions
