Electric slip ring PZGsilvercoppergraphite
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Material
- silver, copper, graphite
- Voltage
660 V
- Primary current
50 A
- Rotational speed
20 rpm
(126 rad.min-1)- Internal diameter
196 mm
(7.72 in)
Description

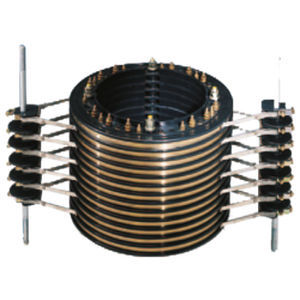

Ravioli Slip Ring Type PZG – provided without housing – combines the possibility of an optional internal passage for tubes, wires or mechanic shafts to axial limited dimensions, always maintaining a wide range of usable and supported voltages.
Blade or copper-graphite or silver-graphite brushes for signals are available, executions range from 4 to 26 rings 50 A.
Ravioli Slip Ring Type PZG is specifically suitable for applications where a considerable internal passage and limited hight dimensions of the device are required.
Wide internal passage
Connections for rings
directly on the terminal box
