Knife cutting machine

for polyethylenetubeprofile

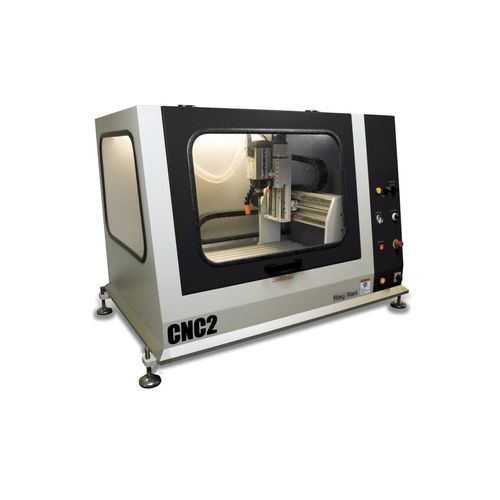

The CNC Sample Profile Cutter used for Test Sample Preparation and 3D prototyping, and is recommended for use with thicker sheet materals or pipe sections as it can cut up to 100mm thick It has set new standards for cutting hard dense polymer sheets and laminates up to 100mm thick as well as polyethylene and polypropylene pipes that are used within the gas and water industry. Totally enclosed for operator safety the CNC2 comes with a bed size of 910mm x 480mm which has tennon slots for clamping down the sample. Travel on the X, Y and Z axis are 600mm x 300mm x 175mm respectively and each slide way is fitted with high quality linear guide rails for precision and accuracy. Cutting feed ranges up to 2500mm/min can be achieved for a fast-accurate milling process with each axis driven and controlled by advanced stepper motor technology. Homing switches are fitted as standard to each axis so machine and program co-ordinates can be set easily on a day to day basis ensuring accuracy and repeatability especially if you are using a static clamping fixture for your machining process. The compact, high torque 1.5KW high speed router spindle which is fitted has a variable speed range from 2400 rpm to 24000 rpm and has a milling cutter capacity of up to 16mm diameter when fitted into industry standard ER25 collets.
