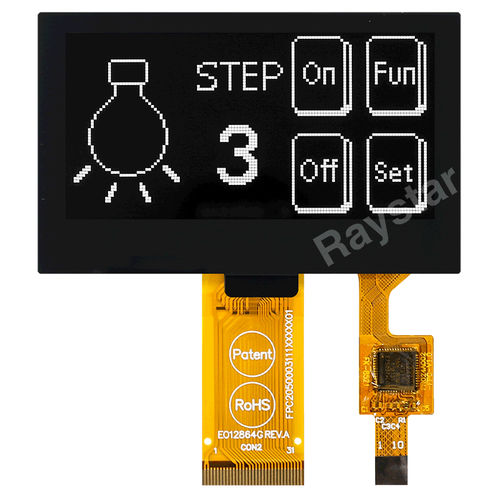

Color display module REX012864G-CTP

graphiccapacitive touch screenOLED

Our 2.42 inch OLED module with capacitive touchscreen has resolution of 128x64 dots. This Capacitive OLED display supports 8-bits 6800, 8080 parallel and 4-line SPI, I2C serial interface. The CTP touch panel has built-in IC GT911 which supports 1-point touch. The series of REX012864G OLED display with capacitive touch screen offers many emitting color options to choose from, including white, yellow, sky blue, and green Structure - COG - Size (Diagonal) - 2.42 - inch Dot Matrix / Resolution - 128 × 64 - dots Module Dimension - 66.8 × 41.3 × 3.71 - mm Viewing Area - 56.01 × 28.49 - mm Active Area - 55.01 × 27.49 - mm Emitting Color - OLED, White / Yellow / Sky Blue / Green - Display Mode - Passive Matrix - IC - SSD1309 - Interface - 8 Bits 6800 8000 / 4-Wire SPI / I2C - PCAP IC - GT911 - PCAP Interface - I2C - Detect Points - 1 - Points Touch Panel - Capacitive Touch Panel - Surface - Normal Glare - Power Supply - 3V - Duty - 1/64 duty - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80 - °C Polarizer Type - Polarizer optional - Type - OLED Graphic Display, OLED Touch Display
