Color display module REX064128A

LCDTFTgraphic

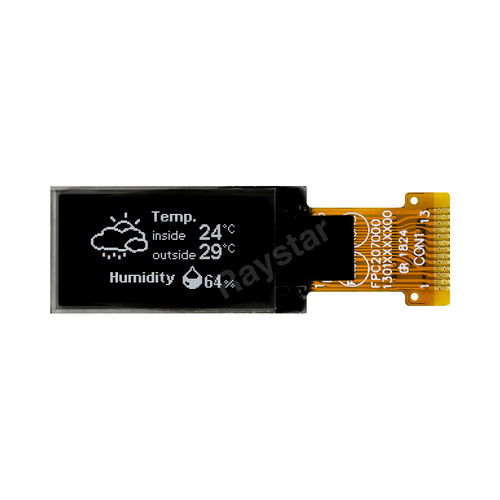

REX064128A is the portrait mode OLED display module in our product line; the diagonal size is only 0.96 inches. This OLED has resolution of 64x128 pixels, using SH1107 controller IC. The OLED display can be emitting light by itself, there’s no need for backlight. Therefore, REX064128A is thinner than other TFT LCD modules of the same size. This 64x128 COG OLED display supports 4-wire SPI / I2C interface. Our OLED boasts high contrast ratio 10,000:1 making the visual performance stand out from traditional displays. Logic supply voltage ranges from 1.65V-3.3V, the typical value is 3V. The module works within temperature from -30℃ to +70℃; Storage temperature range is -30℃ to +70℃. Structure - COG - Size (Diagonal) - 0.96 - inch Dot Matrix / Resolution - 64 × 128 - dots Module Dimension - 14.0 × 28.0 × 1.26 - mm Viewing Area - 11.83 × 22.74 - mm Active Area - 10.86 × 21.74 - mm Dot / Pixel Size - 0.15 × 0.15 - mm Dot / Pixel Pitch - 0.17 × 0.17 - mm Emitting Color - White - Display Mode - Passive Matrix - IC - SH1107 - Interface - 4-wire SPI , I2C - Power Supply - 3V - Duty - 1/64 Duty - Operating Temperature - -30~+70 - °C Storage Temperature - -30~+70 - °C Type - OLED Graphic Display
