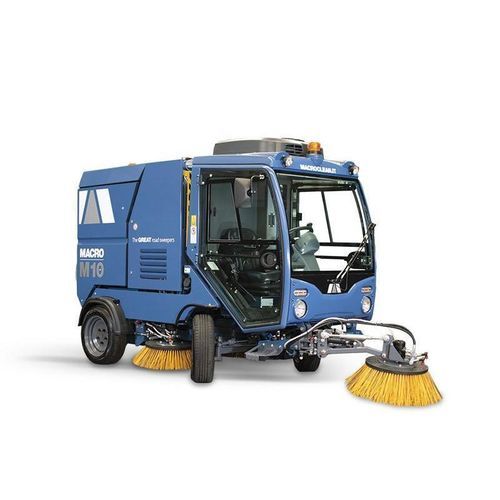

Ride-on sweeper M10

streetdiesel enginestreet

Presentation The MACRO M10 is a modern ride-on street sweeper designed for urban cleaning operations. It offers easy handling and excellent maneuverability, with a cabin configured for comfort during extended shifts.

Use and applications Its robust chassis and compact geometry are optimized for city-center environments: pedestrian areas, arcades, parking lots and public squares. The machine can be fitted with optional equipment for cleaning street furniture and hard-to-reach points.

Main specifications
CLEANING WIDTH: 1,800 mm (OPT 2,200 mm)
HOPPER CAPACITY: 1 m3
DISCHARGE HEIGHT: 1,500 mm (OPT 2,500 mm)
MAXIMUM SPEED: 25 km/h
TURNING RADIUS BETWEEN CURBS: 3,550 mm
TWO FRONT STEERING WHEELS
FULL LOAD WEIGHT: 2,930 kg

Key features

• On-board diagnostic systems for rapid fault reporting and error coding
• Ergonomic physical controls, easy to identify to minimise driver distraction
• EASY START function that automatically enables machine functions
• Simple regulation of diesel engine speed to match working conditions
• Suction mouth liftable up to 1 m to facilitate removal of blockages
• Comfortable cabin insulated from noise, vibration, dust and temperature for long shifts
• High maneuverability and compact design for confined urban environments
• Optional equipment available for street furniture cleaning (e.g. high-pressure lance, leaf suction hose)

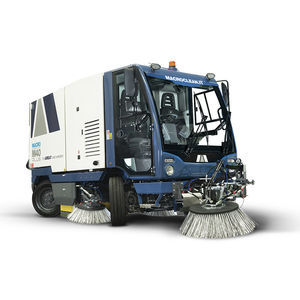

Gallery and materials Product and accessories images available in the gallery (machine photos, configurations with high-pressure lance and leaf suction hose).

Characteristics / Technical specifications

• Model: M10
• Brand: Macroclean / MACRO
• Cleaning width: 1,800 mm (optional 2,200 mm)
• Hopper capacity: 1 m3
• Discharge height: 1,500 mm (optional 2,500 mm)
• Maximum speed: 25 km/h
• Turning radius between curbs: 3,550 mm
• Front steering wheels: 2
• Full load weight: 2,930 kg
• Suction mouth liftable up to 1 m to facilitate removal of blockages
• On-board diagnostic systems with error coding
• Physical controls and EASY START function for simplified start-up and operation
• Insulated and comfortable cabin for long working shifts
• Options available: high-pressure lance, leaf suction hose and other street-furniture cleaning attachments
