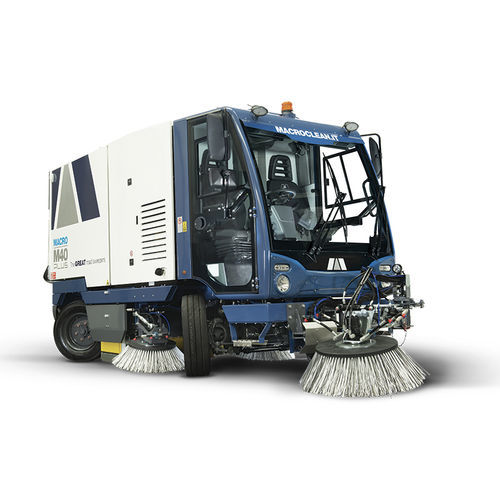

Street suction sweeper M40 Plus

streetoutdoordust

Overview
The MACRO M40 Plus is a next‑generation mechanical suction street sweeper designed for efficient cleaning of urban and industrial areas. It offers high maneuverability, straightforward controls and a cab engineered for long shifts with reduced noise, vibration, dust and thermal exposure.

Key features

• Robust chassis paired with a filtered mechanical suction sweeping system for reliable performance in varied conditions.
• Insulated cab for operator comfort during extended shifts (noise, vibration, dust, temperature control).
• Onboard diagnostic systems for fault reporting and error coding.
• Physical push‑button controls to minimize driver distraction; EASY START function for automatic activation of primary functions.
• Job Selector to adapt working parameters to site conditions.
• Four‑wheel steering enabling tight turns while maintaining a uniform cleaning path.
• High productivity achieved through machine geometries optimized for operational efficiency.

Typical applications

• City centres and urban streets
• Tree‑lined avenues
• Cement plants and industrial facilities
• Ports and local markets
• Heavy‑duty environments: deserts, open‑pit sites, mines

Technical specifications

• Cleaning width: 2500 mm (optional 3300 mm)
• Hopper capacity: 4 m³
• Discharge height: 1050 mm (optional 2100 mm)
• Maximum speed: 42 km/h
• Kerb‑to‑kerb turning radius: 3450 mm
• Steering system: four‑wheel steering
• Operating weight (full load): 8000 kg
• Sweeping system: filtered mechanical suction
