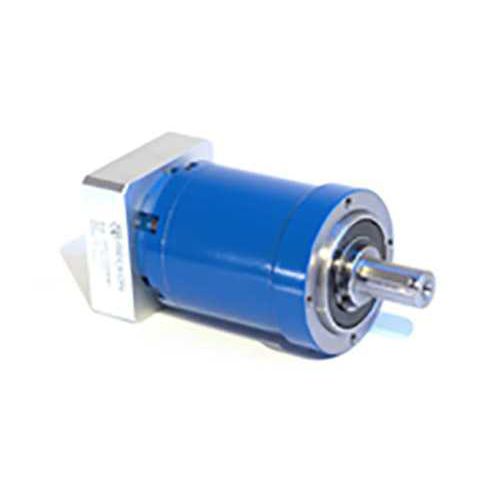

Planetary gearbox ACCESS-CI-ST seriescoaxial200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 10 - 20 Nm, 5 - 10 Nm
- Performance
- precision, low-backlash
- Applications
- shaft
- Other characteristics
- motor
- Rotational speed
6,000 rpm, 8,000 rpm
(37,699.11 rad.min-1, 50,265.48 rad.min-1)- Backlash
Max.: 0.22 °
Min.: 0.08 °
Description
ECONOMICAL, RELIABLE, PRECISE
Access is a low-backlash planetary gearbox designed for moderate to medium-duty applications with variations of torque. It is popular in cartesian pick&place robots.
Acceleration capacity+++
Fast reversals+++
Radial load rating+++
Axial load rating+
Stiffness+++
Precision++
Economy+++++
Suitable to servomotor applicationsYES
Number of sizes in this line4 (40 to 120)
Angular backlash<10 arc-min (1 stage) or <13 arc-min (2 stages)
Optional backlash not available
Available ratios3 to 100
Motor shaft connectionBalanced coupling
