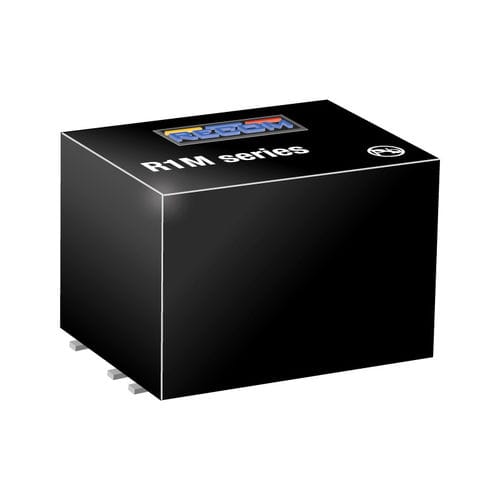

SMD DC/DC converter R1M series regulatedinsulatedsingle-output
Add to favorites
Compare this product
Characteristics
- Configuration
- SMD
- Electrical characteristics
- regulated
- Other characteristics
- single-output, insulated, compact, regulated, dual-output, class 2 protection
- Input voltage
Min.: 4.5 V
Max.: 75 V
- Output voltage
Min.: 3.3 V
Max.: 24 V
- Power
1 W
Description
1W power in SMD package
4:1 Input voltage range
Efficiency up to 81%
1.6kVDC/1min isolation
Regulated output
-40°C to +90°C at full load
Continuous short circuit protected
The R1M is an isolated 1W DC/DC converter in a compact SMD package available with 4:1 inputs covering 5, 12, 24, and 48V rails providing single or dual regulated, short-circuit protected outputs. There is no minimum load requirement. Isolation is 1.6kVDC/1min, and the operating temperature is from -40°C up to +90°C without derating. Class A and Class B EMC conformity requires only a few external components. Standard packaging is tube.
