Compact motor controller Micro Rayon

DCBLDCpositioning

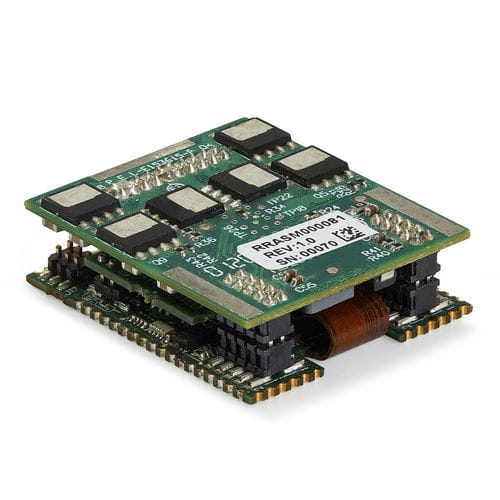

The Micro Rayon Motor Controller is a miniature yet robust motor control solution capable of powering motors up to 450W. It provides advanced digital control for position, speed, and torque, making it an ideal choice for multi-axis robotics and automation systems. With its compact PCB-mount design and user-friendly setup tools, the Micro Rayon ensures precision and efficiency for demanding applications. Product Specs - Power: Capable of driving motors up to 450W - Current: Continuous current rating of 10 ARMS, peak up to 20 ARMS - Supply Voltage: Recommended operating voltage: 12-48 VDC - Operating Temperature Range: -40°C to +85°C - Size: 30.4mm x 25mm x 9.6mm - Weight: 9-11 grams Communication and Feedback Options - Communications: RS232, RS422 (CAN optional) - Feedback: Hall sensors, incremental encoders, SSI, and Sin/Cos encoders - Control Modes: Closed-loop control for position, speed, and torque with PID tuning The Micro Rayon Motor Controller is a compact, high-efficiency solution for precise motor control in demanding applications. Capable of powering motors up to 450W, it supports advanced control modes for position, speed, and torque. Designed for space efficiency, it features a PCB-mountable form factor and provides robust feedback options, including Hall sensors, incremental encoders, and SSI. With its user-friendly interface and built-in safety protections, the Micro Rayon is ideal for multi-axis robotics, industrial automation, and other precision-driven systems.
