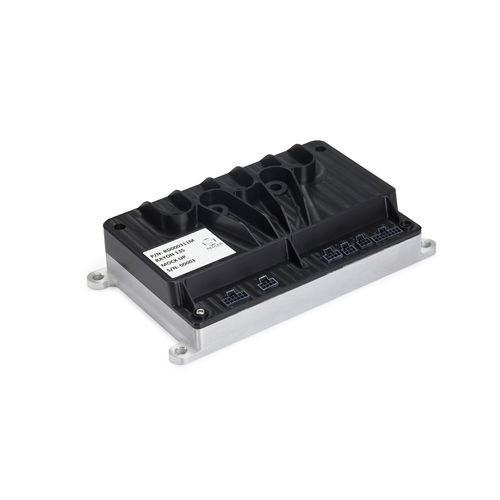

DC motor controller Rayon 135

BLDCpositioningfor robotics

The Rayon 135 Motor Controller is a powerful solution designed for driving high-performance motors up to 12.5kW. With advanced control capabilities for position, speed, and torque, it is ideal for robotics, industrial automation, and demanding applications. This high-power-density module combines precision, reliability, and safety in a versatile package, making it the ultimate choice for modern motor control. Product Specs - Power: Drives motors up to 12.5kW Current: Continuous current rating of 100 ARMS (with heat sink), peak up to 220 ARMS (15 seconds) - Supply Voltage: Recommended operating voltage: 24-72 VDC - Operating Temperature Range: -40°C to +85°C - Size: 45.5mm x 195mm x 107mm - Weight: 0.85 kg Communication and Feedback Options - Communications: - RS232, RS422 & Isolated CAN bus, - Feedback: Supports Hall sensors, incremental encoders, SSI encoders, and Sin/Cos encoders - Control Modes: Closed-loop control for position, speed, and torque with advanced PI tuning The Rayon 135 Motor Controller is a high-performance, compact solution designed for controlling powerful motors with unmatched precision. Capable of driving motors up to 12.5kW, it combines advanced closed-loop control for position, speed, and torque with versatile feedback and communication options. With built-in safety features, user-friendly setup tools, and robust construction, the Rayon 135 is ideal for demanding applications in robotics, industrial automation, and high-efficiency systems. Its compact design and high power density make it the ultimate choice for projects requiring both reliability and performance.
