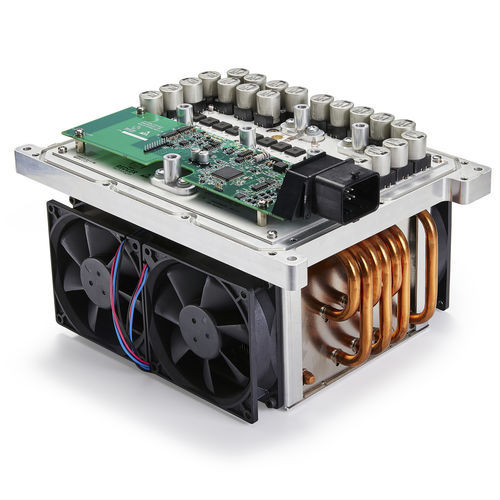

DC motor controller EV-Rider 200

BLDCpositioningfor robotics

The EV-Rider 200 Motor Controller is a powerful, high-density solution designed to drive motors up to 20kW. With advanced control capabilities for position, velocity, and current, it offers exceptional performance in robotics, automotive, and industrial applications. Its compact design, extensive feedback compatibility, and robust safety features make it ideal for demanding environments. Product Specs - Power: Capable of driving motors up to 20kW - Current: Continuous current rating of 200 ARMS, peak up to 420 ARMS (2 minutes) or 520 ARMS (5 seconds) - Supply Voltage: Recommended operating voltage: 24-72 VDC (96 V optional) - Operating Temperature Range: -40°C to +85°C - Size: 225mm x 185mm x 50mm - Weight: 2.3 kg Communication and Feedback Options - Communications: RS232, RS422 (CAN optional) - Feedback: Hall sensors, incremental encoders, SSI, and Sin/Cos encoders - Control Modes: Closed-loop control for position, speed, and torque with PID tuning The EV-Rider 200 Motor Controller is a robust, high-performance solution designed to power motors up to 20kW with precision and reliability. Featuring advanced closed-loop control for position, speed, and current, it is ideal for robotics, automotive systems, and industrial applications. Its compact design, versatile communication options, and extensive feedback compatibility make it suitable for demanding environments. With built-in safety protections and a user-friendly interface, the EV-Rider 200 ensures efficient, reliable, and safe motor operation.
