Plate bending machine

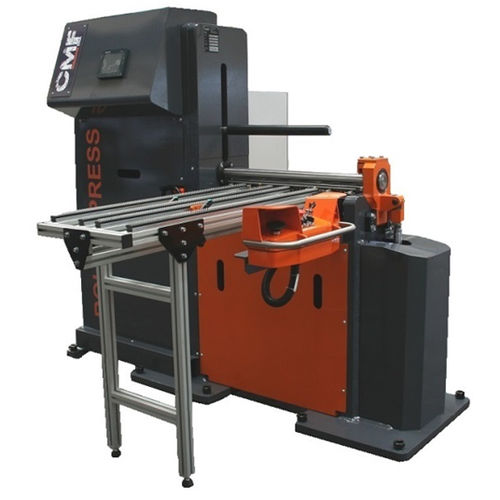

Rollexpress 132 roll bending macghine and its derivatives are adapted to most industrial situations. They give access to the range of high performance CMF rollers.

• Very simple use by all personnel after quick training
• Pinching plates reduced to the minimum for good circularity of the rolled part
• One turn rolling: simplicity and speed
• Diameter changing in 15 seconds without tool
• Significant productivity, up to 600 shells an hour
• Adapted to all types of material: construction steel, stainless steel, titanium, Inconel, aluminium, and all other materials on request and after testing
• Tempered rollers for outstanding service life (more than 10 years)

By integrating various options, Rollexpress becomes a high productivity automatic machine, able to produce all long run parts reliably.

• Shell diameter from 35 mm.
• Shell length up to 3 metres.
• Sheet thickness between 3/10 and 10 mm according to versions.
• Productivity between 80 and 600 parts an hour according to models.
• Possible shell forms: cylindrical, rectangular, oval, triangular, and any other complex form (to be validated according to the radii to be produced).
• In addition to our standard range, we examine every request to adapt our machines to the specifications of our customers.

• Computer numerical control (CNC) for producing programs and parts with complex forms.
• Orientation device of the joint to be welded, for connection to an automatic welder.
