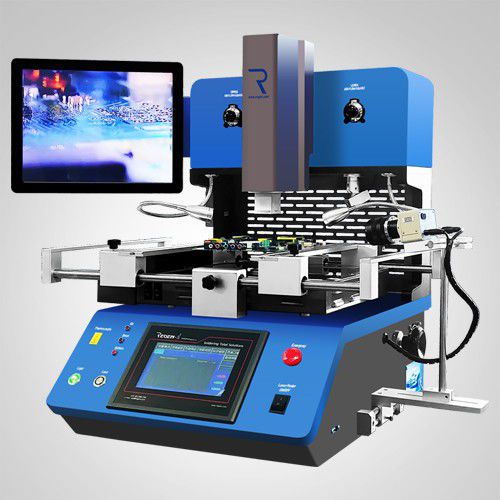

Hot air rework station BK-i330F
for PCB

hot air rework station
hot air rework station
Add to favorites
Compare this product


Characteristics

Type
hot air
Applications
for PCB

Description

Heating Method Hot air(AIR FLOW FAN TYPE) PCB mountable Size 350*400mm (Shaft expandable to 600mm) Upper heater output 1200W Lower heater output 1200W IR heater output 1000W * 4 (4000W) Motion Control Device Cortex-A8 600Mhz 7inch Temperature control Device PID Control External interface USB, Mouse(sold separately) Power 220V 50/60Hz 6000W Product size L620 X W970 X H750 Product Weight 57 Kg Addition function & Basic components Auto Part Removal Available(Applied upper heater high precision motor) Program storage capacity 999 Temperature setting step 7 step(Expansion to 14 step) Temperature rise rate setting randomly from 1 to 10 second by level Auto Parts Removal Nozzle 2 Upper Nozzles for free width * length 14,18,22,26,30,34,38,42,46,50 Lower Nozzles for free width * length 40,50 PCB Holder 2 Calibration temperature sensor 1 Hexagon wrench for maintenance 1set Camera + Monitor 1 set
