BGA rework stations

Rework at highest level Safe machining of large assemblies: ■1.800 W high-performance hybrid heating element ■Full-surface 6,400 W IR underheater ■High-resolution cameras for placement and process monitoring ■Computer-aided ...

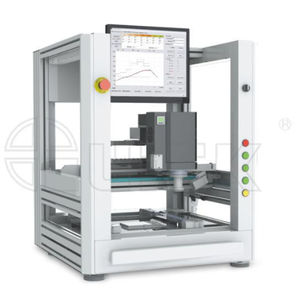

High-precision rework of fine pitch and chip components Technical Highlights: •High-precision axis system (X, Y, Z) and high-resolution cameras •Automated component placement as well as soldering and desoldering processes •Hybrid ...

Technical Highlights: •900 W Hybrid high-performance heating element •Full-area 1,600 W IR underheater •High-resolution cameras for placement and process monitoring •Ergonomically optimal system operation •Modern, user-friendly operating ...

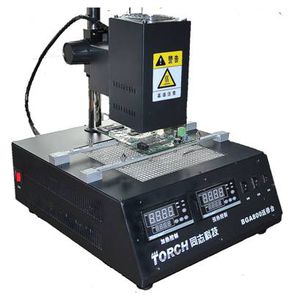

The soldering worktable Bga900-IR is produced by our organization which is warming by infrared beam in twofold sided, can warm from the top and preheat at the bottom. Suit to welding, evacuation or repair BGA, ...

... size of chips 70mm×70mm min size of chips 5mm×5mm max size of PCB 400mm×400mm max thickness of PCB 3-6mm Application BGA, CSP, LGA( Land Grid Array), Micro SMD,MLF,BCC Dimension 400×350 ×410mm Weight About 10 KGS

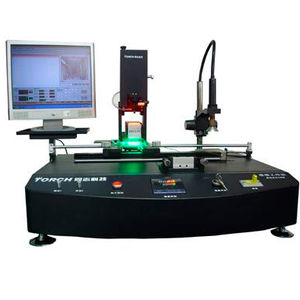

Introduction of BGA rework table: BGA3100 rework table include BGA mounter system, transmission system and weld system. It used to rework ...

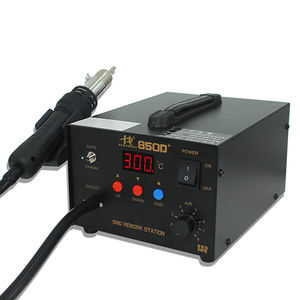

HAIRUI N 850D+ professional rework station with a high precision air and heat control for welding and removing with security and reliability, anti-static design (prevents PCB from being damaged by static ...

Hot air rework station HAIRUI 857D hot air rework station with a high precision air and heat control for welding and removing with security and reliability, anti-static ...

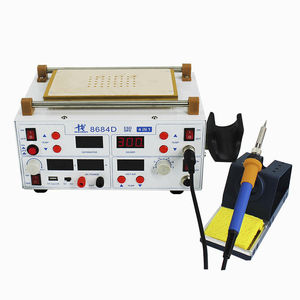

... phone repairing machine is the perfect choice for a variety of soldering applications, including industrial manufacturing, rework, repairs, and more. The comfortable pencil and variable temperature controls give you complete ...

... Power of bottom heater (hot air) 1600W(400W*4, dark infrared heater) Bottom heating range 260*260mm MAX PCB Size 420*500mm MAX BGA Size 60*60mm Infared Temperature sensor 0-300°C(Temperature range) Communication Standard ...

Specifications: Infrared General Power 3000W(max) Voltage 110v/220/230v, 50/60HZ Power of top heater 800W Power of bottom heater (hot air) 800W Power of bottom heater (infrared preheating) 1600W (400W*4) Hot Air Temperature 500°C(Max) Infrared ...

Specifications: Infrared General Power 4200W(max) Voltage 110v/220/230v, 50/60HZ Power of top heater 800W Power of bottom heater (hot air) 800W Power of bottom heater (infrared preheating) 1600W (400W*4) Hot Air Temperature 500°C(Max) Infrared ...

・All-IN-ONE Advanced Technology SMT Rework Station ・Compatible for all kind of rework for different type of SMT components ・Multi-functional profiles can be handled at will ・Wide support ...

... the finest components for optimum precision, the PDR IR-E3 is our top selling system and one of the best performing BGA Rework Stations worldwide.

The SMD-IR BGA rework station includes integrated programable infrared reflow for accurate profile control, high precision optical split vision system, x-y-θ adjustable platform, bottom ...

... all-round hot air rework station for electronic components and assemblies. The complete rework cycle, including desoldering and soldering the component, residual solder removal and reballing, ...
