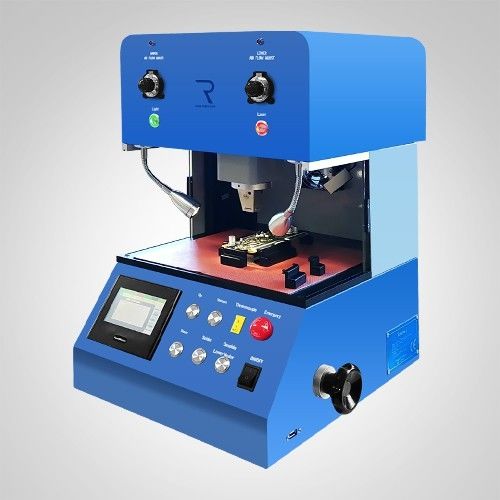

Hot air rework station BK-M400F
for PCB

hot air rework station
hot air rework station
Add to favorites
Compare this product


Characteristics

Type
hot air
Applications
for PCB

Description

Heating Method Hot air(AIR FLOW FAN TYPE) PCB mountable Size 250mm * 250mm Upper heater output 1200W Lower heater output 1200W Motion Control Device Cortex-A8 600Mhz 4.3inch Temperature control Device PID Control External interface USB, Mouse(sold separately) Power 220V 50/60Hz 2500W Product size L420 X W440 X H580 Product Weight 31 Kg Addition function & Basic components Auto Part Removal Available(Applied upper heater high precision motor) Program storage capacity 999 Temperature setting step 6 step(Expansion to 12 steps) Temperature rise rate setting randomly from 1 to 10 second by level Auto Parts Removal Nozzle 2 Upper Nozzles for free width * length 10,13,15,18,20,24,28 Lower Nozzles for free width * length 15,28 Calibration temperature sensor 1 Hexagon wrench for maintenance 1set Magnetic holder 6 sort
