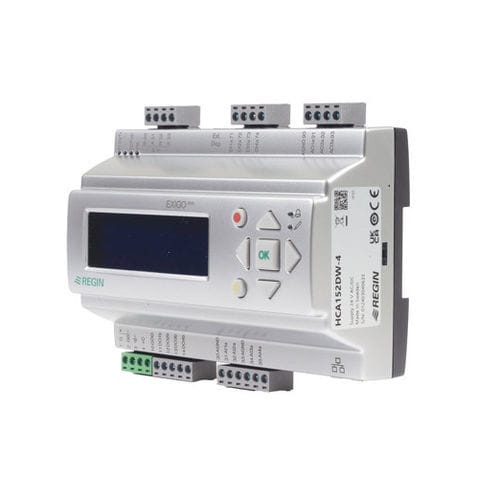

Heating controller HCA152DW-4

Exigo Ardo are controllers for heating and boiler control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door. Specifications Power Supply - 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA Dimensions, external (WxHxD) - 149x121x60 mm Display - Yes Display type - Backlit (LCD), 4 rows of 20 characters Supported protocols - EXOline, Modbus, BACnet RS485 ports - 1 Ethernet ports - 1 AI - 4 DI - 4 AO - 3 DO - 4 Number of I/O - 15 Specifications for Exigo Ardo - Configurable 24 V heating controller Battery type - CR2032 replacable Lithium cell Battery life time - 5 years Protection class - IP20 Storage temperature - -20…70 °C Mounting - DIN-rail Analogue inputs type (AI) - PT1000/Ni1000/Ni1000LG/0-10 V Terminal type - Screw Terminal Detachable terminal - Yes Terminal wire size - 3 mm² Material, housing - Polycarbonate (PC) Material, base - Polycarbonate (PC)
