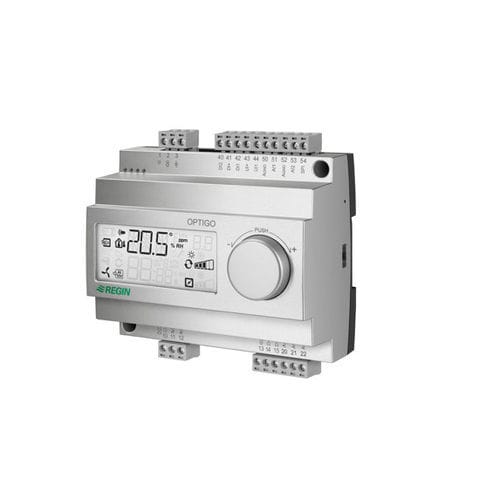

Graphic temperature controller OP10with LCD displayprogrammableIP20
Add to favorites
Compare this product
Characteristics
- Display
- with LCD display, graphic
- Type
- programmable
- Protection level
- IP20
- Use
- heating
- Other characteristics
- DIN rail
- Maximum temperature
Max.: 50 °C
(122 °F)Min.: -40 °C
(-40 °F)
Description
Power Supply - 24VAC (21...27 V AC 50/60Hz), 4.0 VA
Dimensions, external (WxHxD) - 123x123x60 mm
Number of modules - 7
AI - 2
UI - 1
DI - 2
AO - 2
DO - 3
Ambient humidity (non-condensing) - 0…90 % RH
Analogue inputs type (AI) - PT1000
Digital inputs type (DI) - Closing potential-free contact
Digital outputs type (DO) - Triac 24 V AC, 0.5 A (3-point control or alarm output) and one change-over relay 230 V AC, 5 A (fan start).
Universal inputs type (UI) - 0...10 V DC or digital
Analogue outputs type (AO) - 0...10 V DC, short-circuit protected
Terminal type - Screw Terminal
Detachable terminal - Yes
Terminal wire size - 3 mm²
