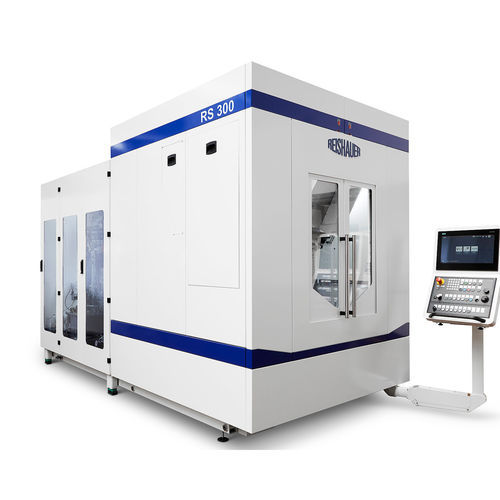

CNC gear skiving machine RS 300with adjustable anglefor large-diameter parts
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Other characteristics
- with adjustable angle, for large-diameter parts
- Module
Max.: 3 mm
(0.12 in)Min.: 1 mm
(0.04 in)- Part diameter
Max.: 300 mm
(12 in)Min.: 50 mm
(2 in)- Spindle speed
3,600 rpm
(22,619.467 rad.min-1)
Description
Overview
The machining of hardened gear rings with a workpiece outer diameter of up to 300 mm is the core application of the Reishauer RS 300. With the achievable gear quality, the RS 300 also meets future requirements with even tighter tolerances, where the highest precision and lowest flank surface roughness are of paramount importance.
Key features
Working Range
Workpiece diameter internal skiving: 50 – 300 mm
Workpiece diameter external skiving: 50 – 200 mm
Number of teeth: 5 – 520
Module range: 1 – 3 mm
Workpiece length: max. 150 mm
Axis crossing angle: max. 35°
Tool spindle speed: max. 3 600 min⁻¹
Workpiece spindle speed: max. 3 600 min⁻¹
Axis travel X-, Y-, Z-axis: 400, 500, 350 mm
Power supply: 400 V / 50 Hz; 460 V / 60 Hz
Ambient temperature: +15 bis +45 °C
Weight: 14 000 kg
Hardware Options (Extract)
Technology Options (Extract)
Control
Technical specifications
The machining of hardened gear rings with a workpiece outer diameter of up to 300 mm is the core application of the Reishauer RS 300. With the achievable gear quality, the RS 300 also meets future requirements with even tighter tolerances, where the highest precision and lowest flank surface roughness are of paramount importance.
Key features
- a new development with a highly productive machining process
- the cost-efficient method for hard finishing of ring gears
- suitable for machining workpieces such as collision-critical gears
- used to equalize even large hardening distortions
- flexibly usable – also for external gears
- the completion of the Reishauer portfolio, enabling hard finishing of all gears in a transmission
- compatible with the ARGUS process monitoring
Working Range
Workpiece diameter internal skiving: 50 – 300 mm
Workpiece diameter external skiving: 50 – 200 mm
Number of teeth: 5 – 520
Module range: 1 – 3 mm
Workpiece length: max. 150 mm
Axis crossing angle: max. 35°
Tool spindle speed: max. 3 600 min⁻¹
Workpiece spindle speed: max. 3 600 min⁻¹
Axis travel X-, Y-, Z-axis: 400, 500, 350 mm
Power supply: 400 V / 50 Hz; 460 V / 60 Hz
Ambient temperature: +15 bis +45 °C
Weight: 14 000 kg
Hardware Options (Extract)
- Interface for part loader systems
- Automatic tool changer (HSK-F 125 interface)
Technology Options (Extract)
- ARGUS Monitoring System
- Twist Control Skiving
- Reishauer ECO-Mode
Control
- Siemens SINUMERIK ONE
- Reishauer RSControl operating software
Technical specifications
- Workpiece diameter (internal): 50–300 mm
- Workpiece diameter (external): 50–200 mm
- Number of teeth: 5–520
- Module range: 1–3 mm
- Max. workpiece length: 150 mm
- Max. axis crossing angle: 35°
- Tool spindle speed: max. 3 600 min⁻¹
- Workpiece spindle speed: max. 3 600 min⁻¹
- Axis travel (X, Y, Z): 400 / 500 / 350 mm
- Power supply options: 400 V / 50 Hz or 460 V / 60 Hz
- Operating ambient temperature: +15 to +45 °C
- Machine weight: 14 000 kg
Catalogs
No catalogs are available for this product.
See all of Reishauer‘s catalogsOther Reishauer products
Machines
