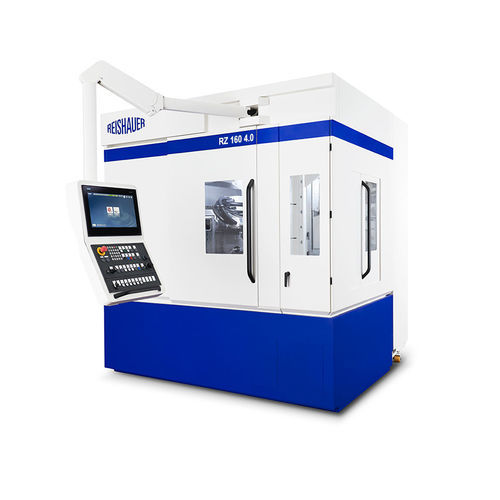

Gear grinding machine RZ 160 4.0
surfaceCNChigh-precision

gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
Add to favorites
Compare this product


Characteristics

Type
surface
Applications
for gears
Control type
CNC
Other characteristics
high-precision, high-productivity, high-speed, high-performance, continuous, stationary
Spindle speed

3,000 rpm
(18,850 rad.min-1)

Description

The machine that can handle all the gears that are used in automotive transmissions. The RZ 160 4.0 gear grinder’s productivity sets the industrial standard for the production of automotive gears. Its working range diameter of up to 160 mm and its module range of 0.5 to 4 covers all gears, disk-type or shaft-type parts that are used in automotive transmissions. Apart from its main field of application – high volume production of automotive gears – this machine is also suitable for flexible usage such as a single prototype gear or small lot size production, for example. This is exemplified by the design features of an additional grinding head for profile grinding, line dressing or the option of „onboard gear measuring”. The RZ 160’s overriding design principle is based on its dual spindle technology, with all axes movements and routines being uncompromisingly executed in parallel, the short reaction times of all spindles, and the high cutting speeds. The optional swival-type dressing axis allows applying all of Reishauer’s dressing technologies such as line dressing, dressing with multi-rip full profile rolls and topological dressing. Short set-up times highlight the flexibility of the machine. Apart from disk-type workpieces, this machine equally handles shaft-type workpieces with its optional tailstock. The operating philosophy is identical to that of the other two types machines of the RZx60 4.0 family. As a result, operators that are familiar with the RZ 60 4.0 and RZ 260 4.0 can immediately, and productively, operate the RZ 160 4.0 machine.

Catalogs

No catalogs are available for this product.

See all of Reishauer‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

BIEMH 2024
BIEMH 2024

3-07 Jun 2024 Bilbao (Spain) Hall 1 - Stand C-04
